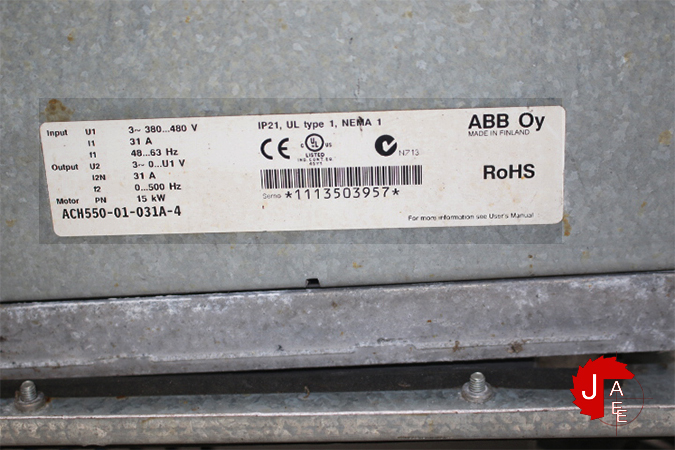

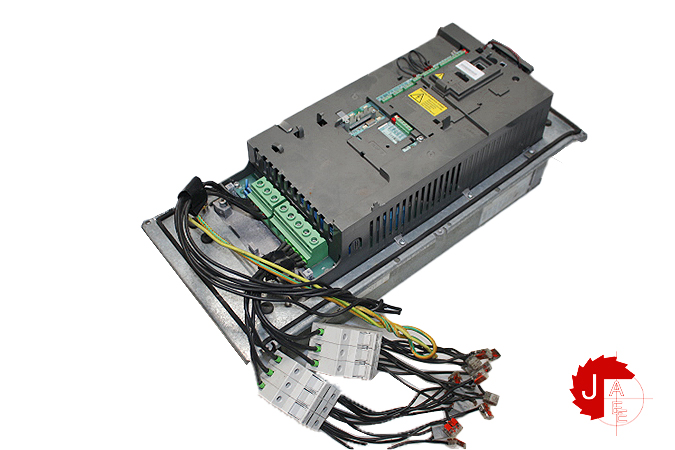

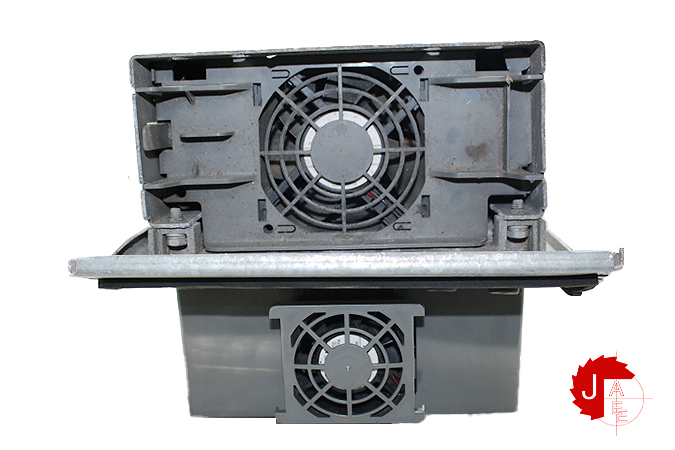

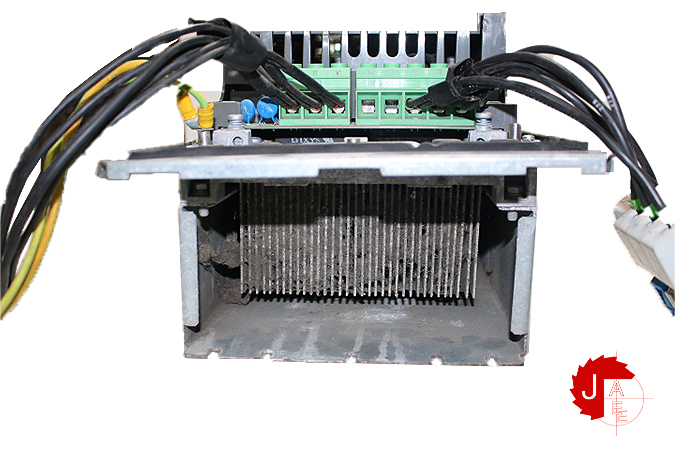

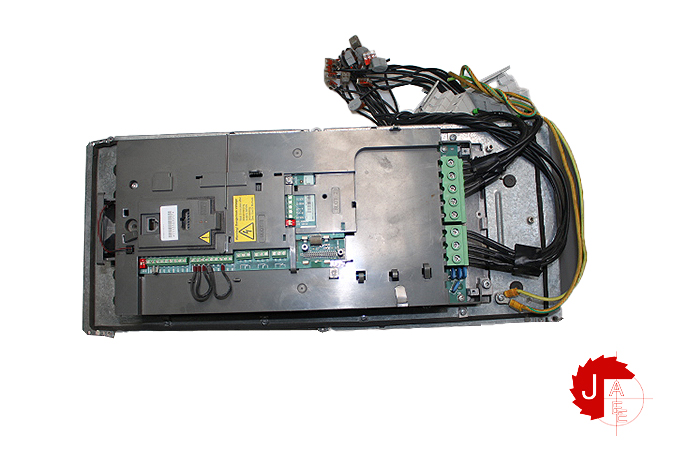

ABB ACH550-01-031A-4 FREQUENCY CONVERTER 3AUA0000004424

Manufacturer: ABB

Type:ACH550-01-031A-4

Model:FREQUENCY CONVERTER

Country of Origin:China (CN)
Finland (FI)
United States (US)
Customs Tariff Number:85044085
Invoice Description:FREQUENCY CONVERTER
Made To Order:No
Minimum Order Quantity:1 piece
Order Multiple:1 piece
Quote Only:No
Selling Unit of Measure:piece
Container Information
Gross Volume:0.081 m³
Dimensions
Product Net Weight:16 kg
Product Net Depth / Length:231 mm
Product Net Height:583 mm
Product Net Width:203 mm
Package Level 1 Depth / Length:231 mm
Package Level 1 Height:583 mm
Package Level 1 Width:203 mm
Package Level 1 Units:1 piece
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Frequency (f):50/60 Hz
Frame Size:R3
Input Voltage (Uin):380 … 480 V
Mounting Type:Wall Mounting
Communication Protocol:BACNET
MODBUS
LON
DeviceNet
PROFIBUS
CAN
EtherNet/IP
PROFINET IO
TCP/IP
Other Bus Systems
Number of Hardware Interfaces:Industrial Ethernet 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 0
Parallel 0
Other 5

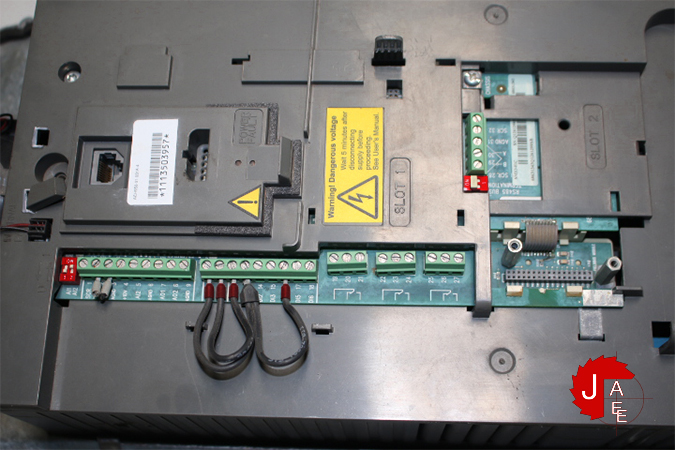

Includes:With control unit
Without optical interface
With PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6/0
Output Current, Normal Use (In):31 A
Output Power, Light-Overload Use (PLD):15 kW
Output Power, Normal Use (Pn):15 kW
Apparent Power Output:21 kV·A
Efficiency Level:IE2
Standby Loss:14 W
