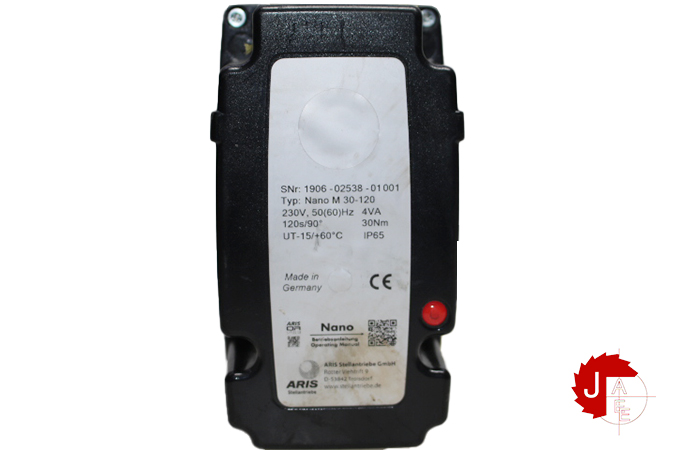

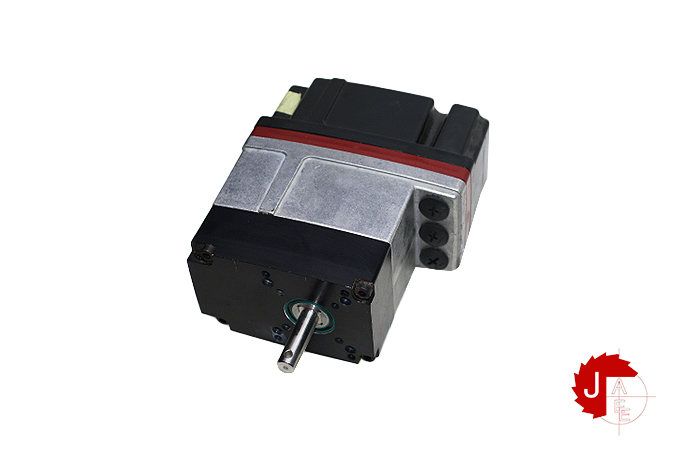

ARIS Stellanleiebe Nano M 30-120 Electrical Rotary Drive

Manufacturer: ARIS Stellanleiebe
Type: Electrical Rotary Drive
Model: Nano M 30-120

Torque [Nm] 30
Time [s/90°] 120

Motor AC Synchronous motor, short circuit-proof
Protection class IP 65 (optional IP 66
Ambient temperature–15 °C…+60 °C/optional -40 °C…+80 °C (mit PMR: 0 °C…+60 °C)
HousingAlu die cast (EN AC-44200) untreated
GearMetal
Cover Polycarbonate
Shaft 1.4021
Position indicatoroptional
Power supply230 V AC (optional 115 V AC/24 V AC)
Additional switches2 pcs (optional)
Potentiometer optional
Trave l10°…330°
Duty cycle 100%
Connection 3 cable entries M16x1.5
Path cutoff Switch cams/Micro switches
Maintenance Lifetime lubrication (maintenance free)
Control 3-point-step
