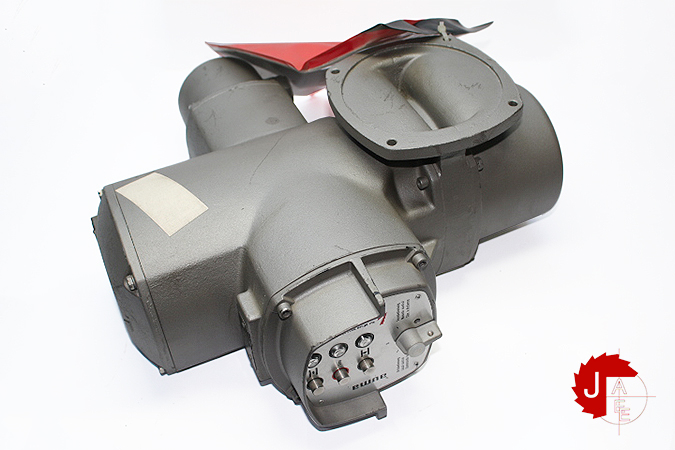

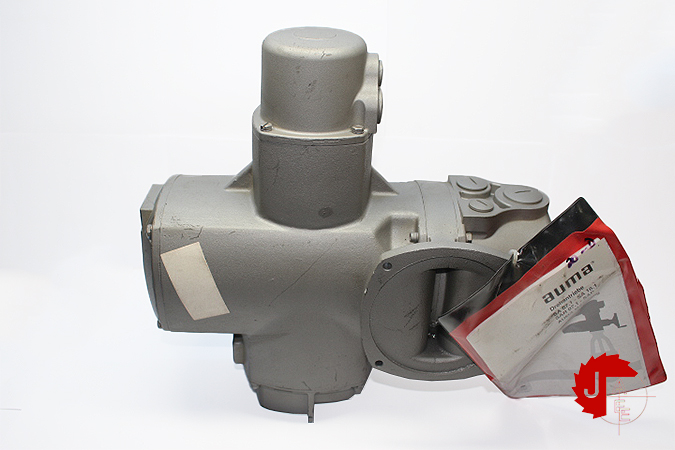

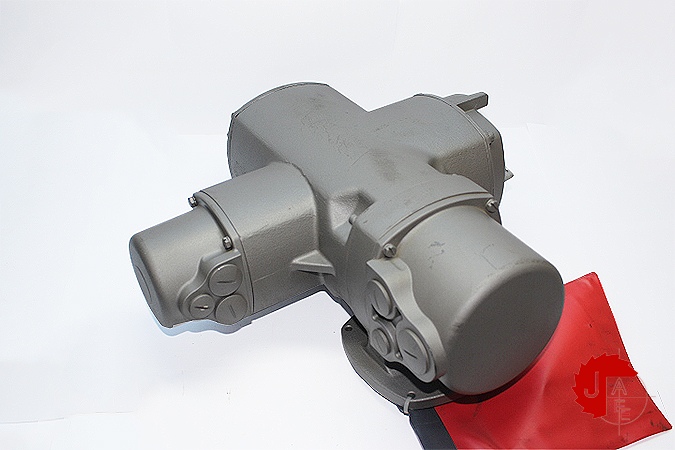

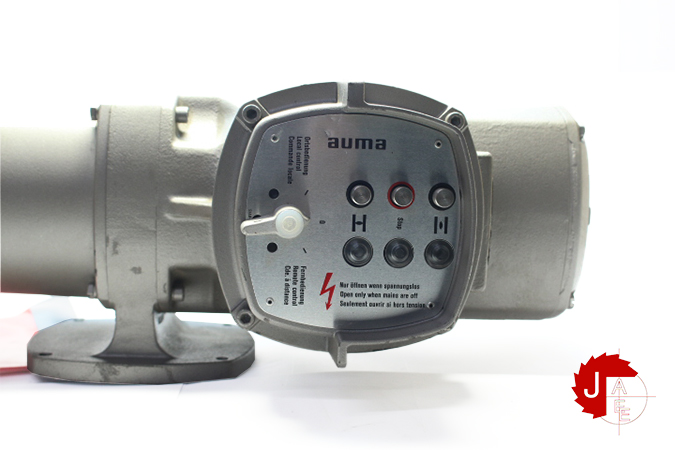

AUMA MA 02.1 Actuator controls 740756

AUMA MA 02.1 Actuator controls 740756

Manufacturer: AUMA
Type: Actuator controls
Model: MA 02.1

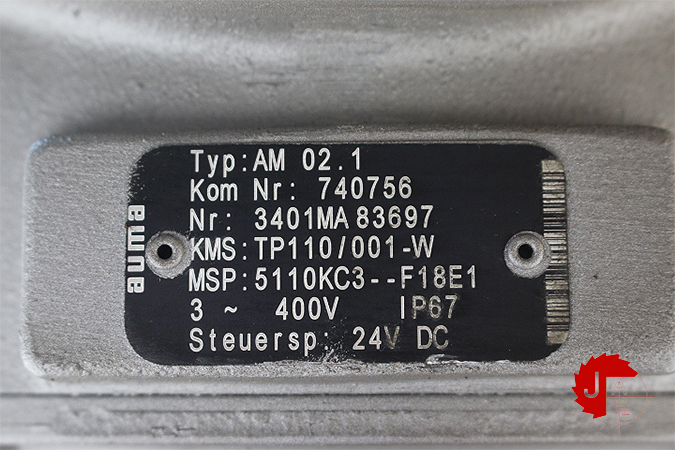

Part No: 740756

General information
Actuator controls AM 01.1/AM 02.1 for controlling multi-turn actuators of the SA/SAR .1, SA/SAR .2 type ranges and part-turn actuators of the
SQ/SQR .2 type range.

Features and functions

Power supply: 3-phase AC 400V 50/60 Hz

External supply of the electronics (option): 24 V DC +20 % / –15 %
Current consumption: Basic version approx. 250 mA, with options up to 500 mA
For external electronics supply, the power supply of actuator controls must have an enhanced isolation
against mains voltage in compliance with IEC 61010-1 and the output power be limited to 150 VA.

Current consumption: Current consumption of controls depending on mains voltage:
For permissible variation of mains voltage of ±10 %: 380 to 690 V AC = max. 160 mA
