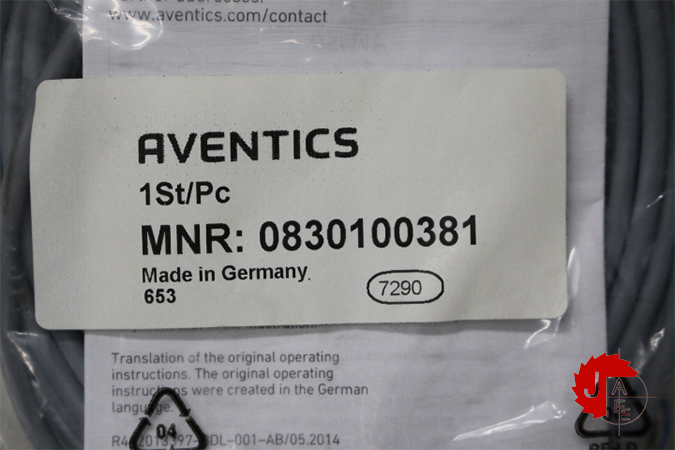

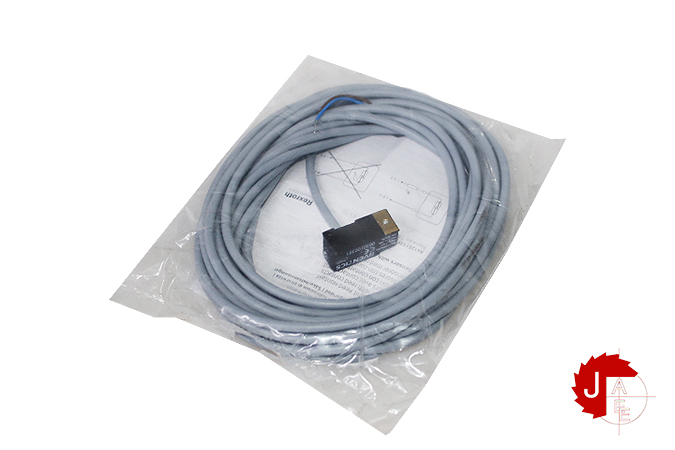

AVENTICS 0830100381 Sensor Series ST9

Manufacturer: AVENTICS
Type: Sensor
Model: Series ST9
Part No: 0830100381

Direct mounting for series KHZ
Slot width 9 mm groove
Cable with cable
Type of contact Reed
Switching capacity 3 W / 5 VA
Protection class IP67, IP65
Min. ambient temperature -20 °C
Max. ambient temperature 80 °C
Voltage drop U at Imax 2,1 V + I*Rs
Protective resistor for reed 1,3 Ω
DC switching current, max. 0.13 A
AC switching current, max. 0.2 A
Switching point precision ±0,1 mT
LED status display Yellow
Electrical connection 2, type without wire end ferrule, tin-plated
Electrical connection 2, number of poles2-pin
Operating voltage DC, min.12 V DC
Operating voltage DC, max.24 V DC
Operating voltage AC, min.12 V AC
Operational voltage AC, max.24 V AC
Short circuit resistance Protected against polarity reversal
Shock resistance 100 g / 11 ms
Vibration resistance 60 g (50 … 2000 Hz)
Cable length L 5 m
Housing materia lepoxy resin
