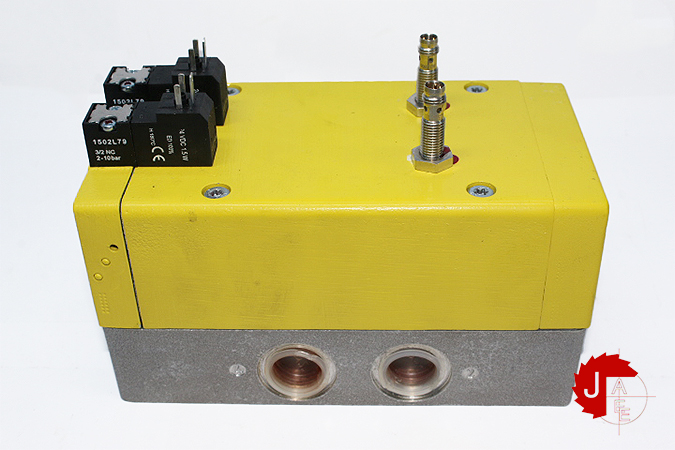

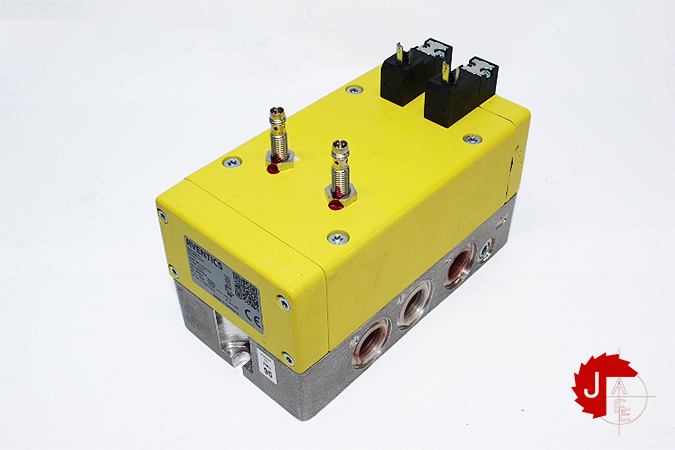

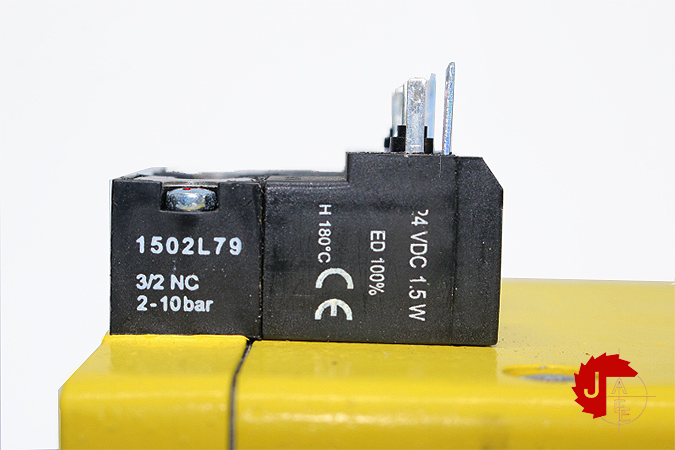

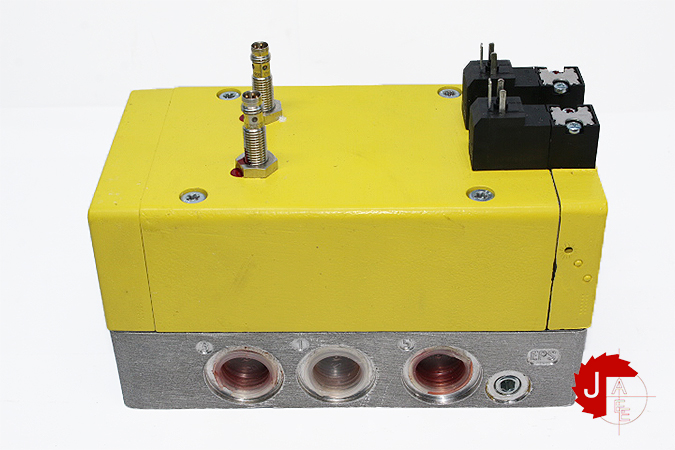

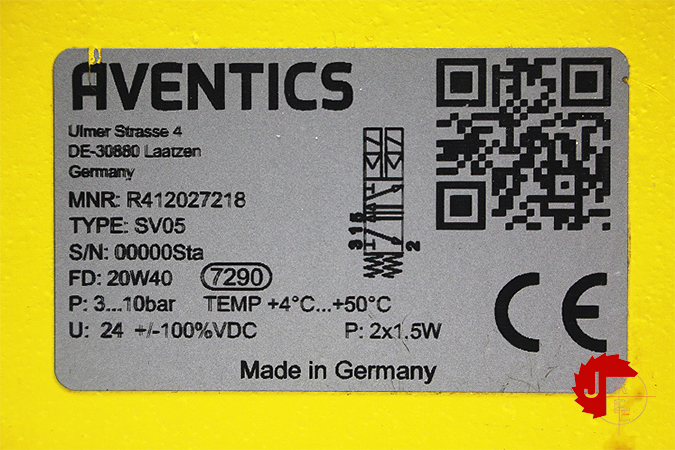

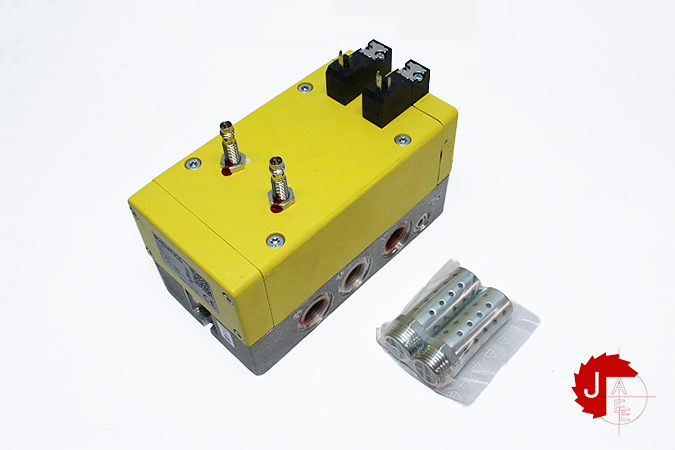

AVENTICS R412027218 5/2 directional safety valve, Series SV05

AVENTICS R412027218 5/2 directional safety valve, Series SV05

Manufacturer: AVENTICS
Type: 5/2 directional safety valve, Series SV05
Model: R412027218

Activation Electrically
Switching principl e5/2
Compressed air connection output G 1/2
Voltage tolerance DC-10% / +10%
Actuating control Single Solenoid
Sealing principle Soft Seal
Pilot Internal
Standards ISO 13849-1, category 4, performance level: e (possible)
Valve type Double spool valve
Return With spring return
Compressed air connection input G 1/2
Power consumption DC 1.5 W
Working pressure min. internal 3 bar
Working pressure max. internal 10 bar
Working pressure min. external 0 bar
Working pressure max. external 10 bar
Control pressure min. 3 bar
Control pressure max. 10 bar
Min. ambient temperature 4 °C
Max. ambient temperature 50 °C
Min. medium temperature 4 °C
Max. medium temperature 50 °C
Medium Compressed air
Max. particle size 5 µm
Oil content of compressed air min .0 mg/m³
