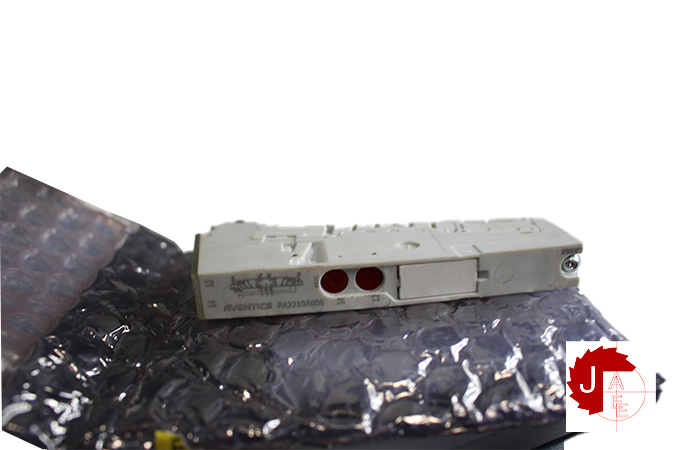

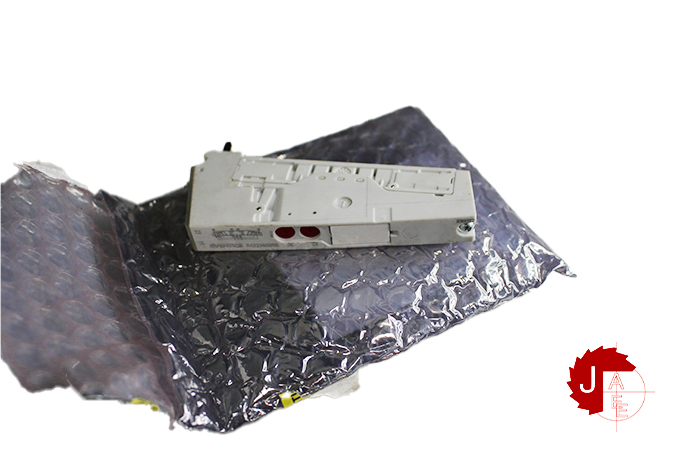

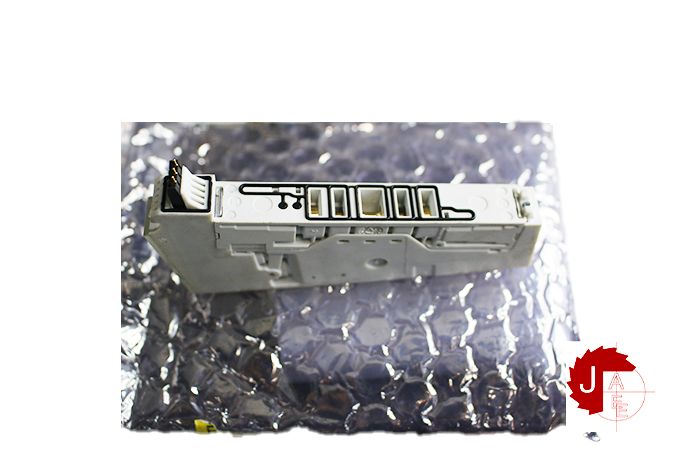

AVENTICS R422103005  5/3-directional valve, Series

Type Spool valve, positive overlapping
Activation Electrically
Pilot External
Sealing principle Soft sealing
Blocking principle Base plate principle, multiple
Working pressure min./max. -0,9 … 10 bar
Control pressure min./max. 3 … 8 bar
Ambient temperature min./max. -10 … 60 °C
Medium temperature min./max. -10 … 60 °C
Medium Compressed air
Max. particle size 40 µm
Oil content of compressed air 0 … 5 mg/m³
Nominal flow Qn 650 l/min
Nominal flow 1 ▶ 2 650 l/min
Nominal flow 2 ▶ 3 520 l/min
Pilot control exhaust With collective pilot air exhaust
Protection class with connection IP65
LED status display Yellow
Duty cycle 100 %
Typ. switch-on time 13 ms
Typ. switch-off time 13 ms
mounting screws Hexalobular socket (TORX) ISO 10664-8
Mounting screw tightening torque 0,5 Nm
Tightening torque tolerance ±0,1 mT
Weight 0,062 kg AVENTICS R422103005
