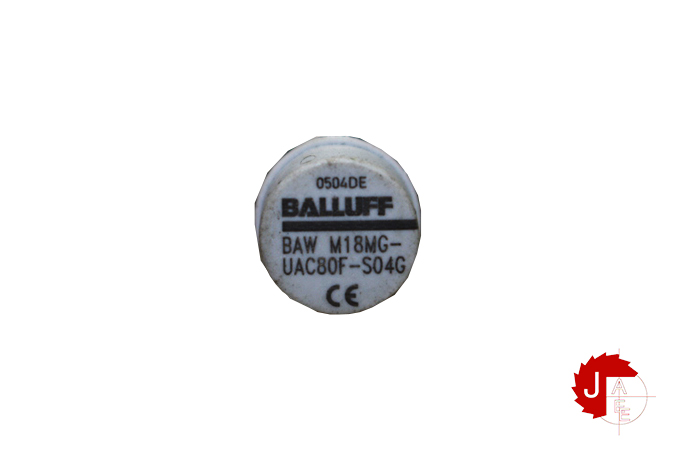

BALLUFF BAW M18MG-UAC80F-S04G Inductive standard sensors BAW002C

Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BAW M18MG-UAC80F-S04G
Part No: BAW002C

Dimension Ø 18 x 65 mm
Style Housing M18x1
Installation non-flush
Range 2…8 mm
Analog output Analog, voltage 0…10 V
Output characteristic falling on approach
Limit frequency –3 dB 500 Hz
Repeat accuracy per BWN ±12 µm
Non-linearity max. ±180 µm
Housing material Brass, nickel-plated
Material sensing surface PBT
Connection Connector, M12x1-Male, 3-pin
Operating voltage Ub 15…30 VDC
Ambient temperature -10…70 °C
IP rating IP67
