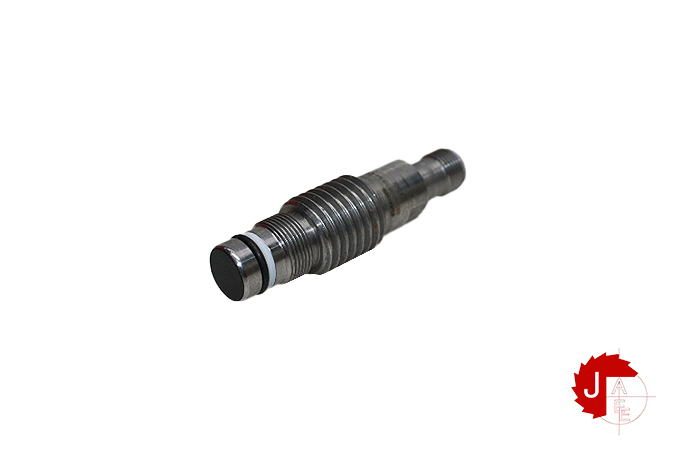

BALLUFF BES 516-300-S128-S4-D Pressure-rated inductive sensors BHS004F

Manufacturer: BALLUFF
Type: Pressure-rated inductive sensors
Model: BES 516-300-S128-S4-D
Part No: BHS004F

Dimension Ø 12 x 56 mm
Style Housing M12x1
Installation for flush mounting
Range 1.5 mm
Switching output PNP normally closed (NC)
Switching frequency 2000 Hz
Housing material 1.4104 stainless steel
Material sensing surface EP
Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…80 °C
Pressure rating max. 500 bar
IP rating IP68
