BALLUFF

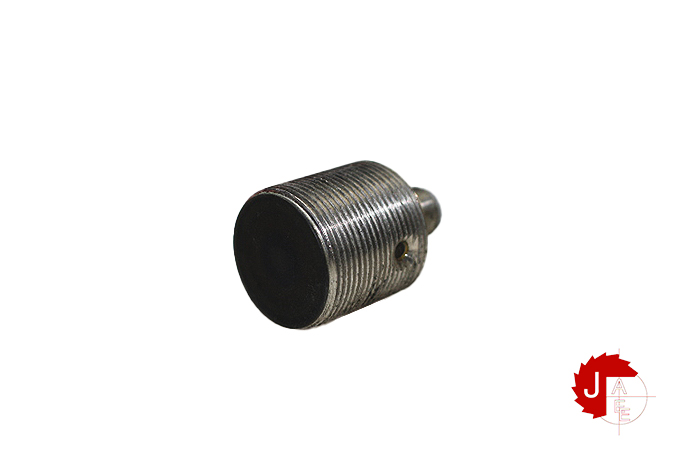

BALLUFF BES 516-327-E5-Y-S4 Inductive standard sensors BES00RW
Dimension Ø 30 x 44.5 mm
Range 15 mm
Switching output PNP Normally open (NO)
Availability: 8 in stock
Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES 516-327-E5-Y-S4
Part No: BES00RW
Dimension Ø 30 x 44.5 mm
Style Housing M30x1.5
Installation for flush mounting
Range 15 mm
Switching output PNP Normally open (NO)
Switching frequency 100 Hz
Housing material Brass, nickel-plated
Material sensing surface PA 12
Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…70 °C
IP rating IP68
| Manufacturer | BALLUFF |
|---|---|
| Model | BES 516-327-E5-Y-S4 Inductive standard sensors BES00RW |
| Condition | New |
