BALLUFF

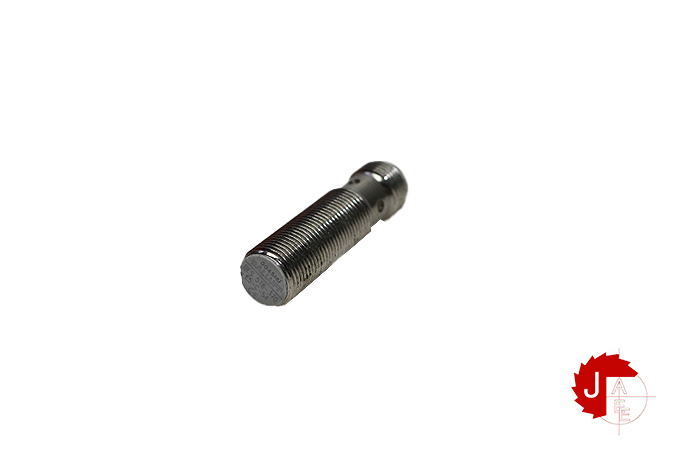

BALLUFF BES 516-370-E5-C-S4 Inductive standard sensors BES00YT
Dimension Ø 12 x 45 mm
Range 2 mm
Switching output PNP normally closed (NC)
Availability: 15 in stock
Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES 516-370-E5-C-S4
Part No: BES00YT
Dimension Ø 12 x 45 mm
Style Housing M12x1
Installation for flush mounting
Range 2 mm
Switching output PNP normally closed (NC)
Switching frequency 3500 Hz
Housing material Brass, Nickel-free coated
Material sensing surface PBT
Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…70 °C
IP rating IP68
| Manufacturer | BALLUFF |
|---|---|
| Model | BES 516-370-E5-C-S4 Inductive standard sensors BES00YT |
| Condition | New / Used |
