BALLUFF

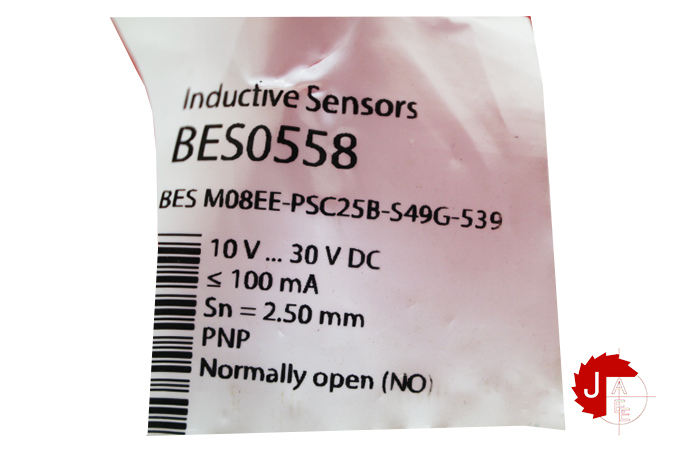

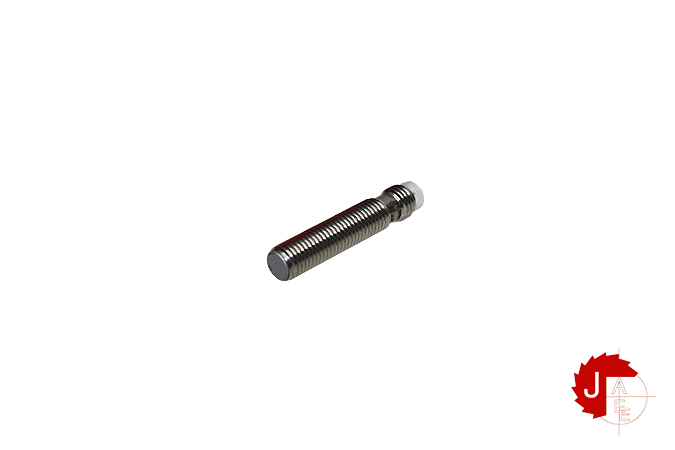

BALLUFF BES M08EE-PSC25B-S249G-539 Inductive standard sensors BES0558
Dimension Ø 8 x 40 mm
Range 2.5 mm
Switching output PNP normally open (NO)
Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES M08EE-PSC25B-S249G-539
Part No: BES0558
Dimension Ø 8 x 40 mm
Style Housing M8x1
Installation for flush mounting
Range 2.5 mm
Switching output PNP normally open (NO)
Switching frequency 5000 Hz
Housing material Stainless steel
Material sensing surface PBT, 2K coating
Connection Connector, M8x1-Male, 3-pin
Operating voltage Ub 10…30 VDC
Ambient temperature 0…60 °C
IP rating IP68
| Manufacturer | BALLUFF |
|---|---|
| Model | BES M08EE-PSC25B-S249G-539 Inductive standard sensors BES0558 |
| Condition | New |
