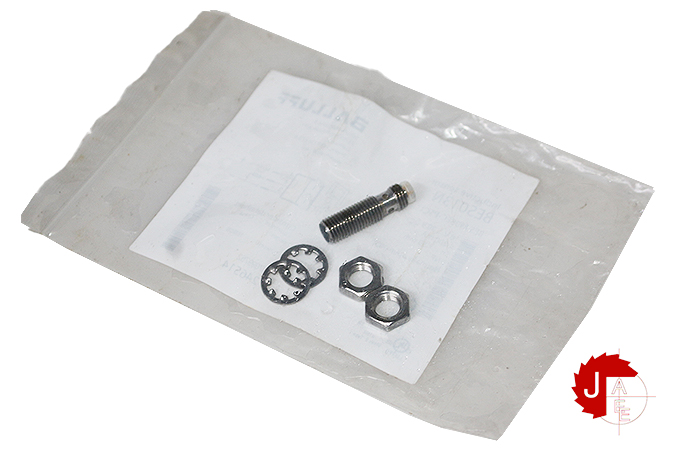

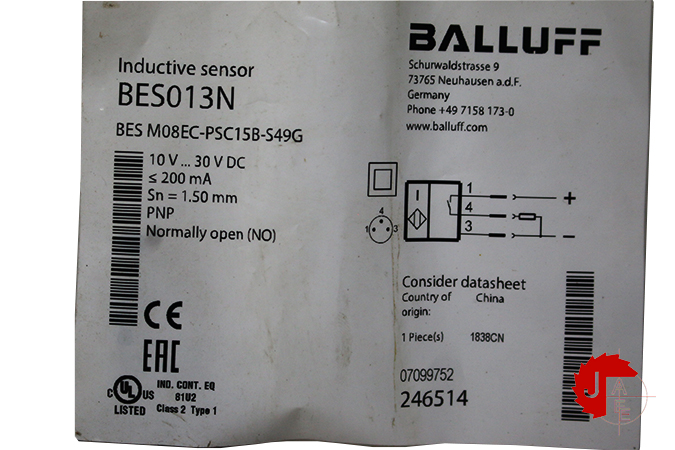

BALLUFF BES013N Inductive standard sensors BES M08EC-PSC15B-S49G

Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BES013N
Part No: BES M08EC-PSC15B-S49G

Dimension Ø 8 x 30 mm
Style Housing M8x1
Installation for flush mounting
Range 1.5 mm
Switching output PNP normally open (NO)
Switching frequency 5000 Hz
Housing material Stainless steel
Material sensing surface PBT
Connection Connector, M8x1-Male, 3-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -40…85 °C
IP rating IP68
