BALLUFF

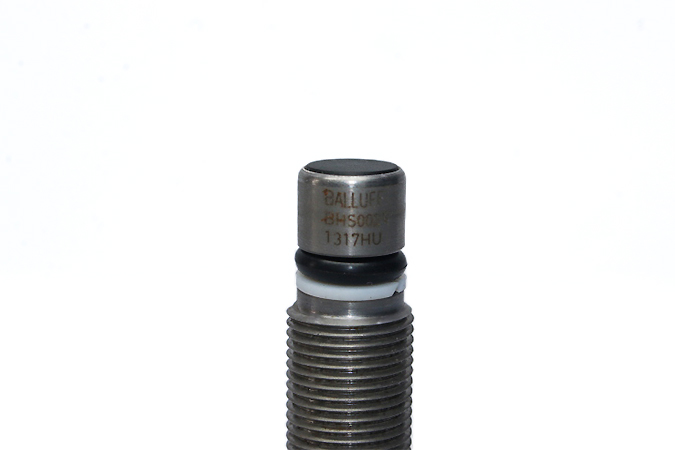

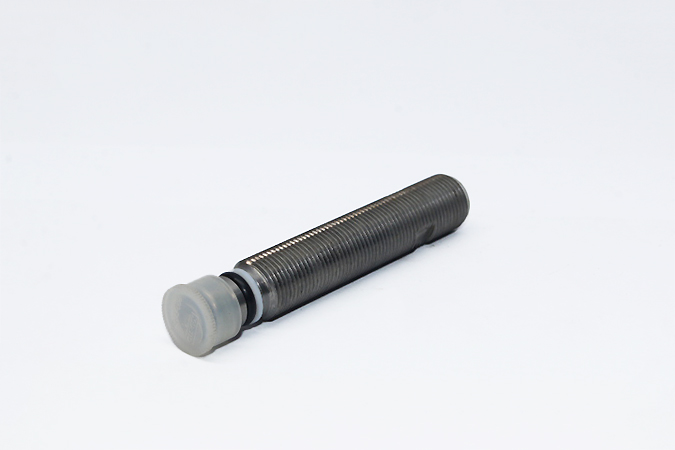

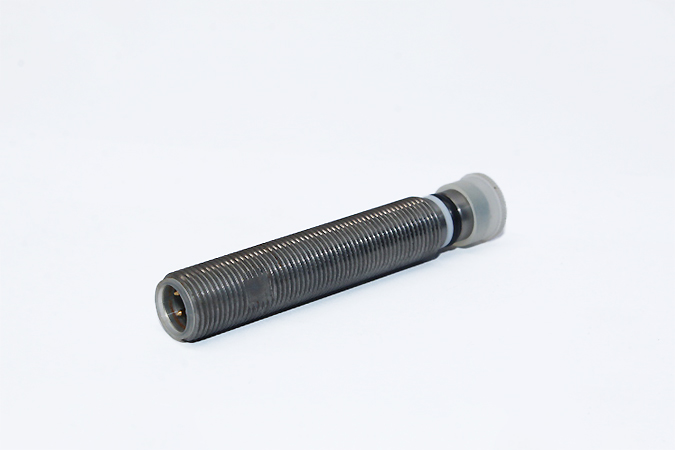

BALLUFF BHS0021 Pressure-rated inductive sensors BES 516-300-S162-S4-D
Dimension Ø 12 x 69 mm
Range 1.5 mm
Switching output PNP normally open (NO)
Manufacturer: BALLUFF
Type: Pressure-rated inductive sensors
Model: BES 516-300-S162-S4-D
Part No: BHS0021
Dimension Ø 12 x 69 mm
Style Housing M12x1
Installation for flush mounting
Range 1.5 mm
Switching output PNP normally open (NO)
Switching frequency 2000 Hz
Housing material Stainless steel
Material sensing surface EP

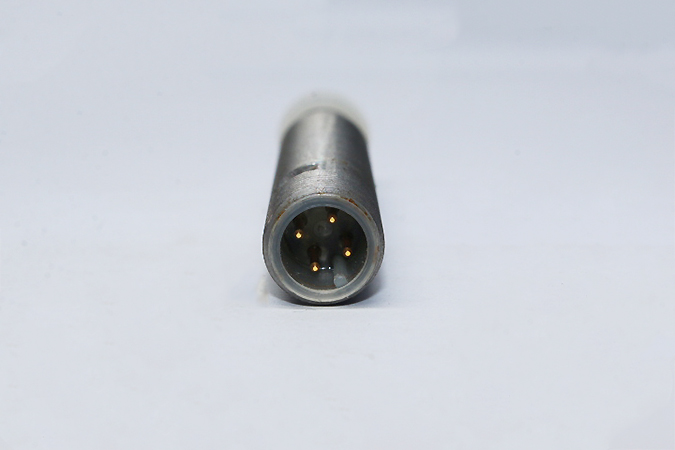

Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…80 °C
Pressure rating max. 500 bar
IP rating IP68
| Manufacturer | BALLUFF |
|---|---|
| Model | BHS0021 Pressure-rated inductive sensors BES 516-300-S162-S4-D |
| Condition | NEW OUT OF BOX |
