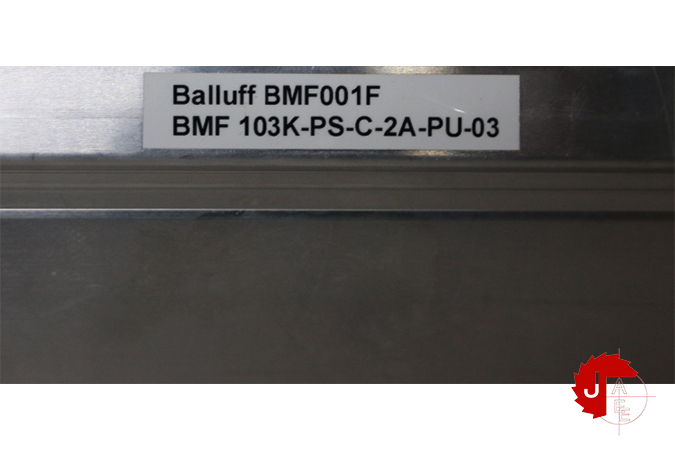

BALLUFF BMF001F Magnetic field sensors for multiple slot shapes BMF 103K-PS-C-2A-PU-03

Manufacturer: BALLUFF
Type: Magnetic field sensors for multiple slot shapes
Model: BMF 103K-PS-C-2A-PU-03
Part No: BMF001F

Dimension 9 x 4.8 x 16 mm
Principle of operation Magnetic field sensor

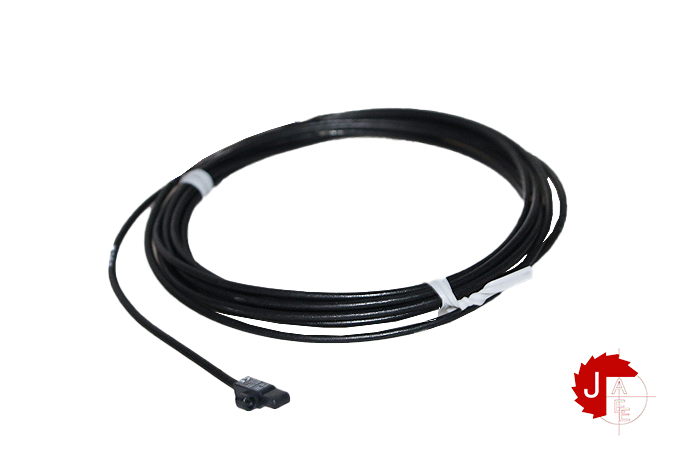

Cable PUR, 3 m
Application Optimized response path especially suited for short-stroke cylinders.
Mounting part Mounting bracket BMF 103-HW*
Housing material PBT
Switching output PNP normally open (NO)
Switching frequency 30000 Hz
Operating voltage Ub 10…30 VDC
Ambient temperature -25…85 °C
IP rating IP67
