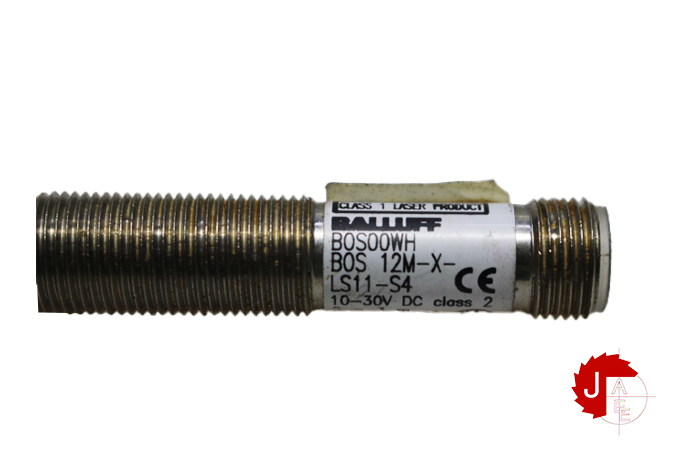

BALLUFF BOS 12M-X-LS11-S4 Through-beam sensors

Manufacturer: BALLUFF
Type: Inductive standard sensors
Model: BOS 12M-X-LS11-S4

Series 12M
Dimension Ø 12 x 70 mm
Principle of operation Photoelectric sensor
Principle of optical operation Through-beam sensor (Emitter)
Beam characteristic Focus, typical at 500 mm
Light type Laser red light
Light spot size Ø 2.5 mm Light exit
Range 0…3 m
Connection Connector, M12x1-Male, 4-pin
Housing material Brass, nickel-plated
Material sensing surface Glass
Operating voltage Ub 10…30 VDC
