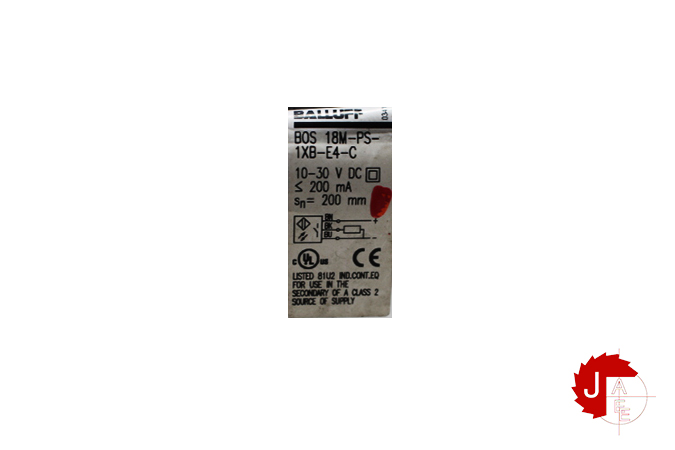

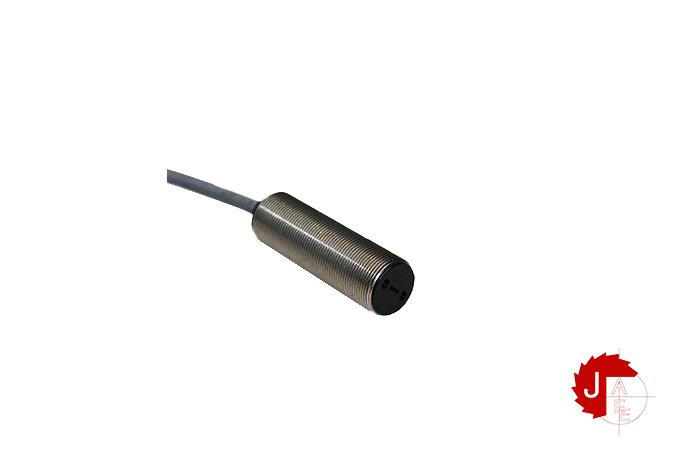

BALLUFF BOS 18M-PS-1XB-E4-C Diffuse sensors

Manufacturer: BALLUFF
Type: Diffuse sensors
Model: BOS 18M-PS-1XB-E4-C

Current DC
Switching function normally-open
Output PNP
Rated operational current Ie 200mA
Supply Voltage 10…30V DC
Ripple < 10% from UB
Frequency of Supply Voltage DC
No-load supply current <20mA
Voltage drop <2,5V
Short protection yes
Protected against polarity reversal yes
Rated insulation voltage 250V AC
Output resistance 33kOhm
max. Load capacity 1μF
Datenblatt by CD-ROM – 04/2007
Degree of protection IP67
