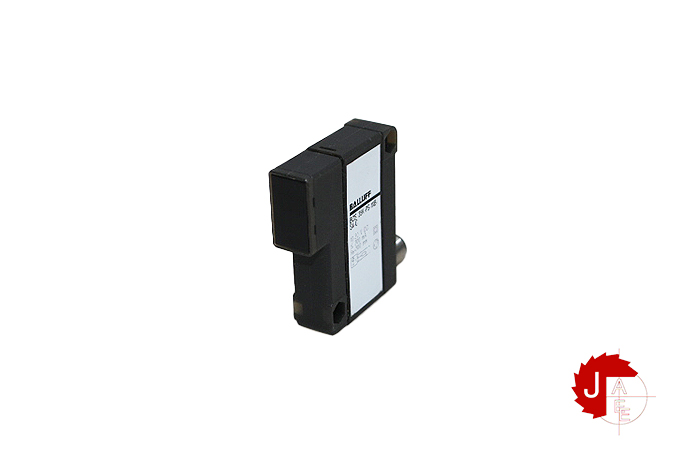

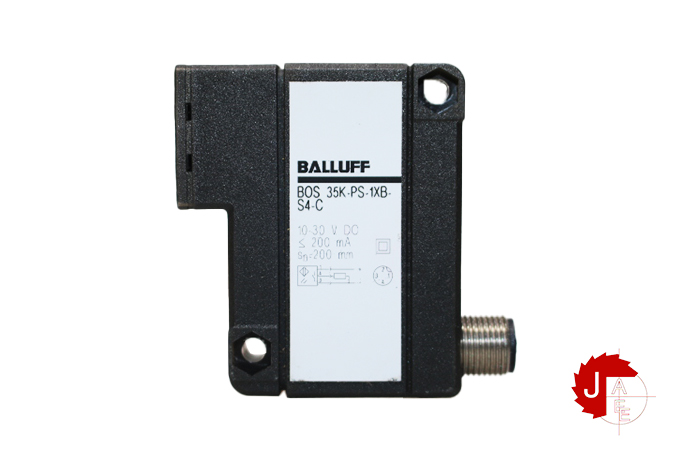

BALLUFF BOS 35K-PS-1XB-S4-C Photoelectric Reflex Switch BOS00U8

Manufacturer: BALLUFF
Type: Photoelectric Reflex Switch
Model: BOS 35K-PS-1XB-S4-C
Part No: BOS00U8

Load capacitance max. at Ue 1 μF
MTTF (40 °C) 500 a
No-load current Io max. at Ue 20 mA
Operating voltage Ub 10…30 VDC
Output resistance Ra 33.0 kOhm
Pollution degree 3
Protected against miswiring yes
Rated insulation voltage Ui 250 V AC
Rated operating current Ie DC 200 mA
Rated operating voltage Ue DC 24 V
Ready delay tv max. 100 ms
Residual current Ir max. 50 μA
Switching frequency 100 Hz
Turn-off delay toff max. 5 ms
Turn-on delay ton max. 5 ms
Utilization category DC -13
Voltage drop Ud max. at Ie 2.5 V

Protection class II
Protection type IEC 60529 IP67
