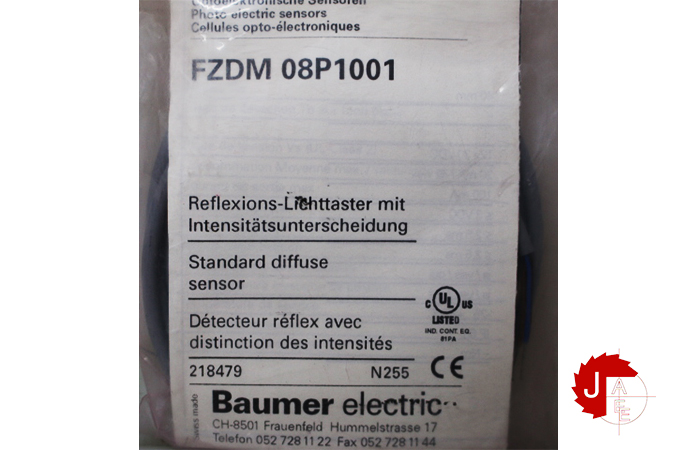

BAUMER FZDM 08P1001 Diffuse sensors with intensity difference 10218479

Manufacturer: BAUMER
Type: Diffuse sensors with intensity difference
Model: FZDM 08P1001
Part No: 10218479

Type Intensity difference
Sensing distance Tw < 40 mm
Alignment / soiled lens indicator Flashing light indicator
Light indicator LED red
Sensitivity adjustment No
Suppression of reciprocal influence Yes

Light source Pulsed infrared diode
Wave length 880 nm

Response time / release time < 1 ms
Voltage supply range +Vs 10 … 30 VDC
Current consumption max. (no load) 42 mA
Current consumption typ. 20 mA
Voltage drop Vd <2 VDC
Output function Light operate
Output circuit PNP
Output current 100 mA
Short circuit protection Yes
Reverse polarity protection Yes
