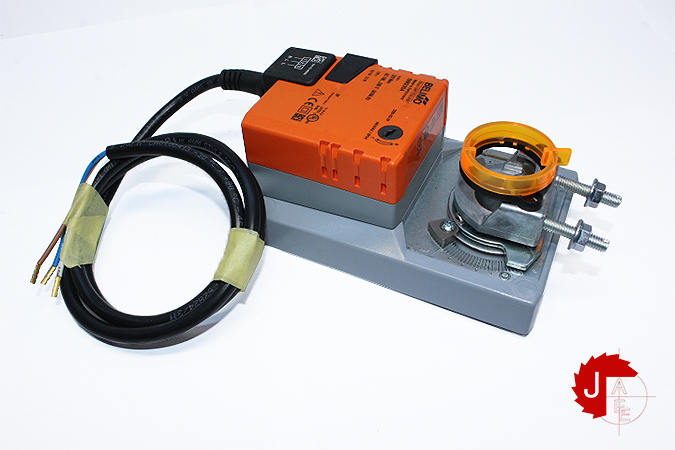

BELIMO SM230A Rotary actuator, 20 Nm

BELIMO SM230A Rotary actuator, 20 Nm

Manufacturer: BELIMO
Type: Rotary actuator, 20 Nm

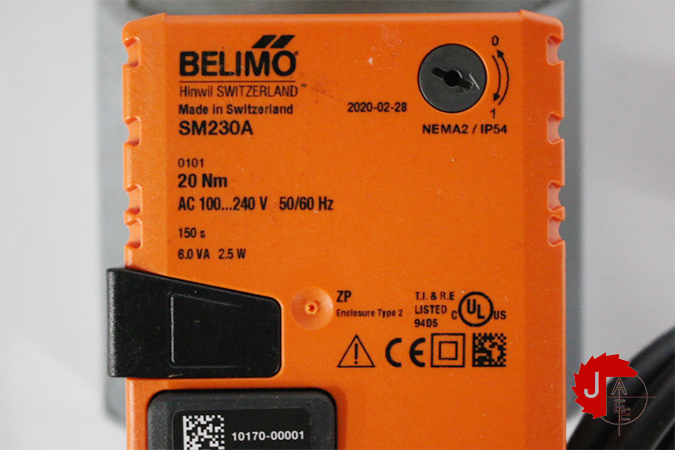

Model: SM230A

Rotary actuator, 20 Nm, AC 100…240 V, Open/close, 3-point, 150 s, IP54

Specifications
Voltage AC/DC AC 100…240 V
Power consumption (running) 2.5 W
Power consumption (holding) 0.6 W
Power Consumption For Wire Sizing 6 VA
Connection Supply Control Cable 1 m, 3x 0.75 mm²
Torque 20 Nm
Control type Open/close – 3-point
Direction Of Motion Motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Manual override With push-button, can be locked
Angle of rotation 95
Running time (motor) 150 s / 90°

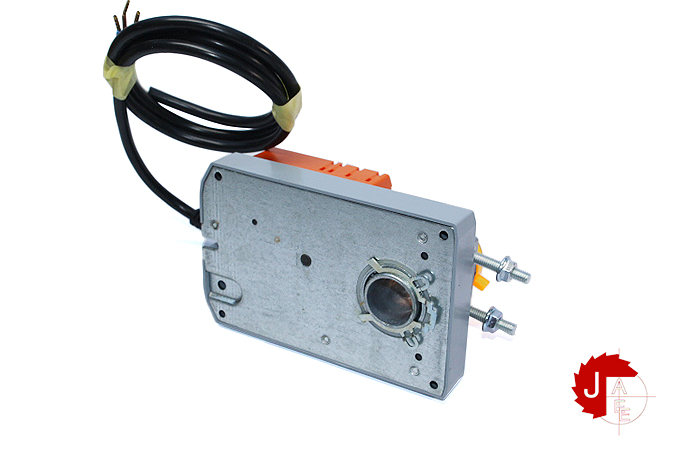

Mechanical interface
Universal shaft clamp reversible 10…20 mm
Protection category IP54
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temperature -30…50°C [-22…122°F]
