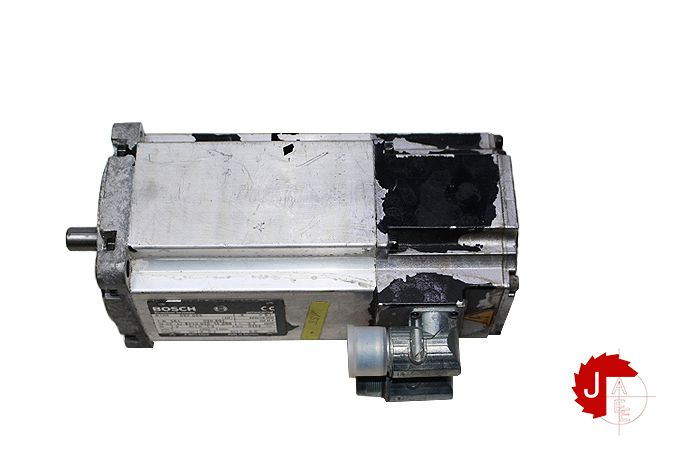

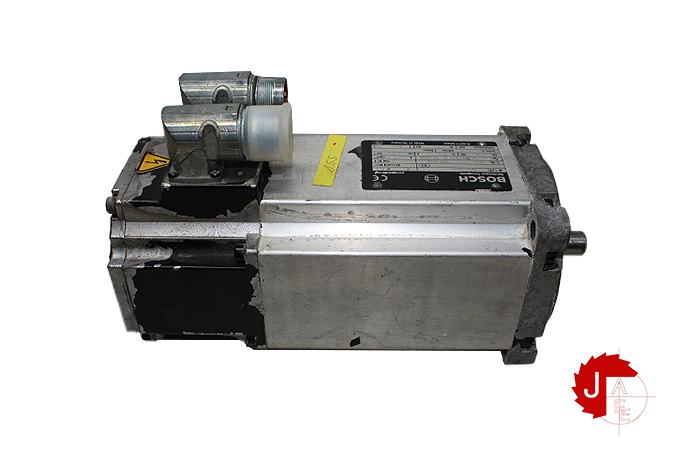

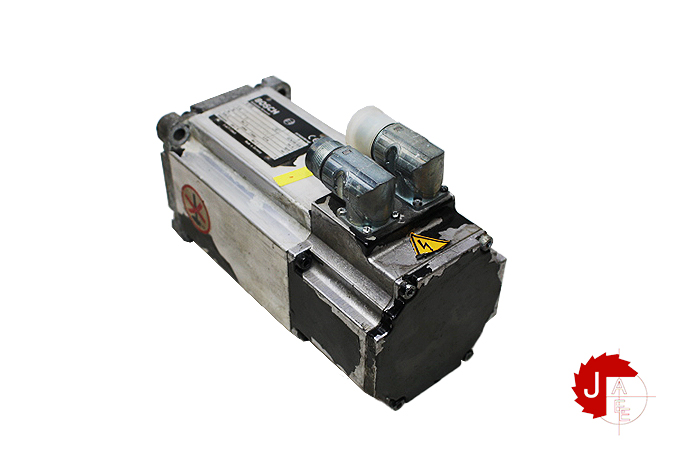

BOSCH SR-A2.0020.030-14.080 Brushless servomotor

BOSCH SR-A2.0020.030-14.080 Brushless servomotor

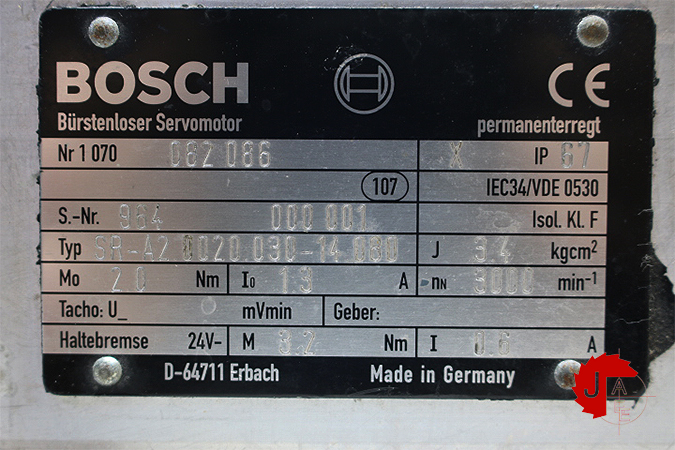

Manufacturer: BOSCH
Type: Brushless servomotor
Model: SR-A2.0020.030-14.080

Brushless servomotor with sinusoidal e.m.f with resolver.

Locked-rotor torque “M0” : 2.0
Locked-rotor current at M0 “I0” : 1.3
Torque constant KT “Nm/A” : 1.5
Moment of inertia, incl. encoder”J”: 3
Flange SW : 100 mm
Shaft d x l : 4 x 30 mm
max. length w/o holding brake L : 198 mm
Encoder type Resolver : SR:Resolver
Precision/Resolution : 10 angular minutes/8192 incr./rev.
Holding torque, transferable MBr : 3.2 Nm
Supply voltage UBr : 24 10 %, residual ripple 5 % V
Rated current IBr : 0.56 A
Moment of inertia JBr : 0.4 10-4 kgm
