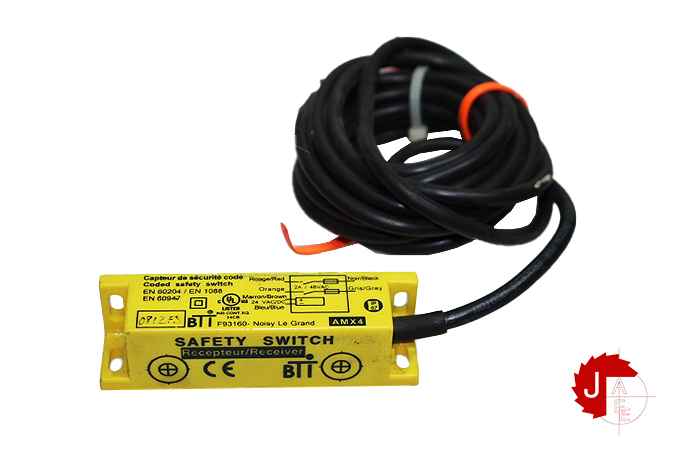

BTI AMX4 NON CONTACT CODED SAFETY SWITCH

Manufacturer: BTI
Type: NON CONTACT CODED SAFETY SWITCH
Model: AMX4

Switching distance Sn (closing) : 7mm
Switching distance Sn (opening) : 10mm
Hysteresis/Misalignment : +2 mm / ±7mm
Power supply: 24V AC/DC –15% / +10%, 50/60 Hz
Current consumption : 40mA/DC, 50mA/AC
Safety outputs : 2 NO outputs 48V AC, 30V DC, 2A
Auxiliary output : PNP-NC, 250mA
Electronic double coding with self-control : ACOTOM
Temperature operation : -20°C…+60°C
Max. switching frequency : 2Hz
Resistance to vibration : 10g / 11ms
Shock stress : 10…55Hz, 1.5mm
Protection class : IP67
