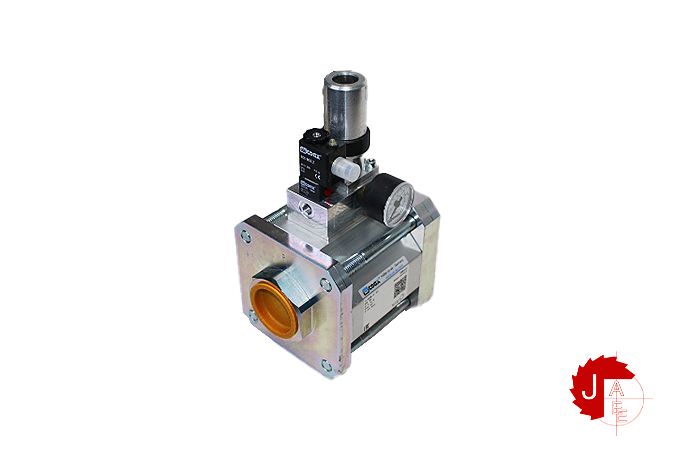

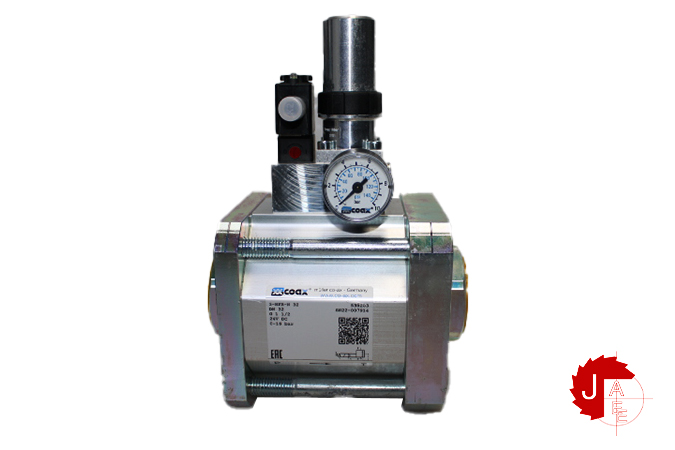

Manufacturer: COAX
Type: Pressure limitation valve
Model: 3-HPB-N 32
| ports | threads G 1 1/2 |
| pressure regulation range | 1-16 bar |
| settling time | < 900 ms |
| media | liquid highly viscous contaminated |
| media temperature | 0 °C — +60 °C |
| ambient temperature | 0 °C — +50 °C |
| insulation rating | H 180 °C |
| protection | IP65 |
| energized duty rating | ED 100% |
| connection | plug acc. DIN EN 175301-803, form A, 4 positions x 90°, wire diameter 6-8 mm M12x1 connector acc. DESINA / VDMA |
