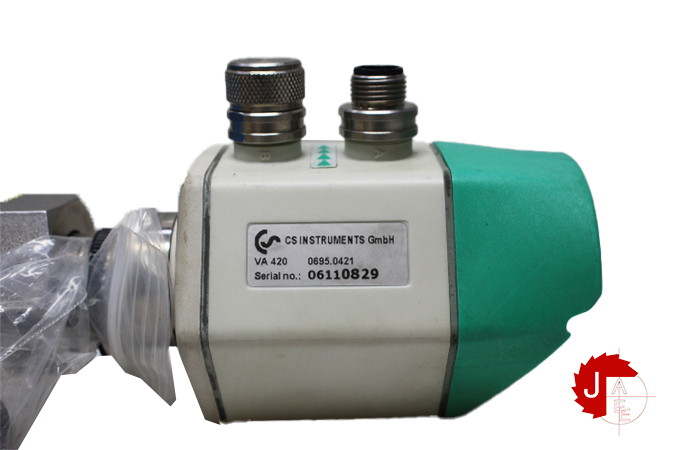

CS INSTRUMENTS VA 420 Flow sensor VA 420 with integrated measuring section

CS INSTRUMENTS VA 420 Flow sensor

Manufacturer: CS INSTRUMENTS
Type: Flow sensor VA 420 with integrated measuring section
Model: VA 420

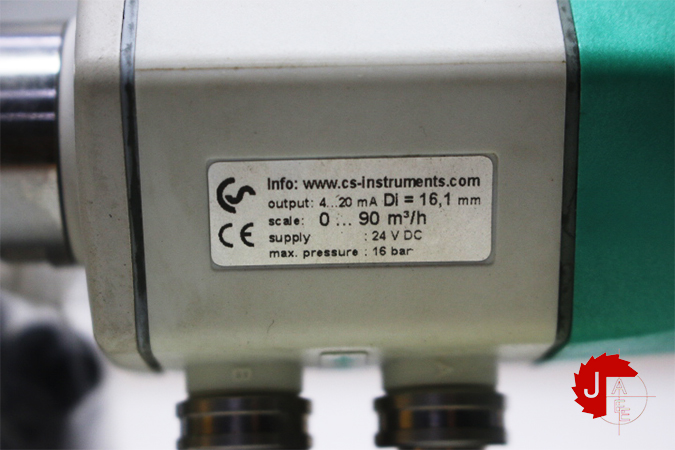

G 1/2

Working Pressure: 16 bar
Flow Rate: 0 .. 90 m3/h

Operating Voltage: 24 VDC

Output : 4..20 mA

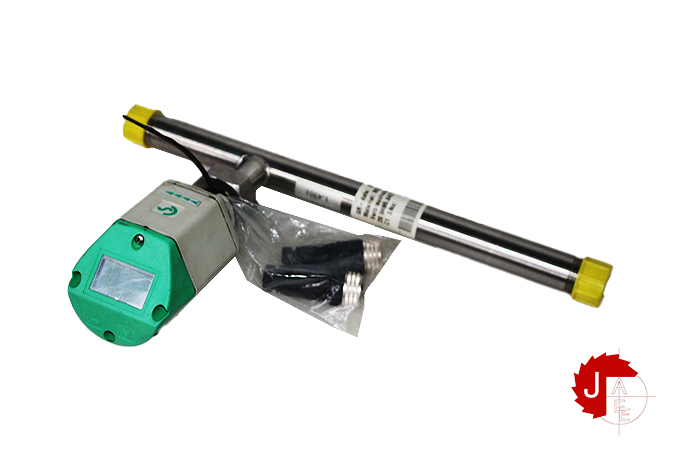

Flow sensor VA 420 with integrated measuring section
Available with and without flange. The affordable flow meters VA 420 work according to the approved calorimetric measuring principle. Due to its compact design it is possible to monitor all compressed air systems from the compressor to the smallest compressed air tool (1/4“ to 2 inch) with the affordable flow meter VA 420.

Application range of VA 420
Compressed air balancing, compressed air consumption measurement
Leckage air / leak rate determination
Mobile compressed air measurement in front of single machines/plants
Flow measurement of process gases like e.g. nitrogen, CO2, oxygen, argon, nitrous oxide
Flow measurement at nitrogen generators
Stationary use
For stationary use there are the following outputs available for the data transfer to a building management system or PLC: 4…20 mA for actual flow. Pulse output (galvanically separated) for the total consumption
