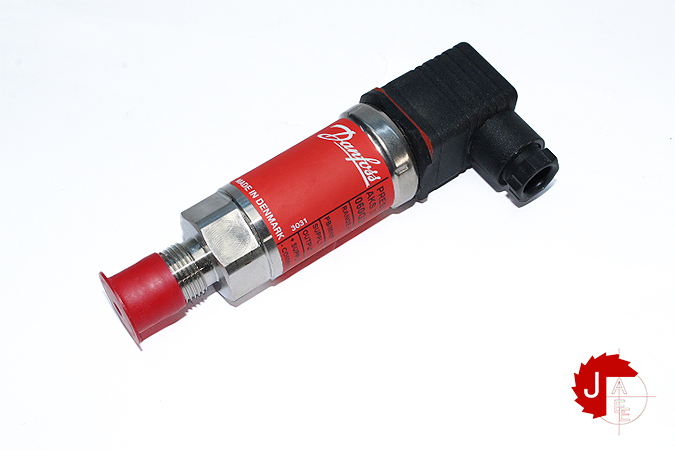

Danfoss AKS 33 Pressure transmitters 060G2111

Danfoss AKS 33 Pressure transmitters 060G2111

Manufacturer: Danfoss
Type: Pressure transmitters
Model: AKS 33
Part No: 060G2111

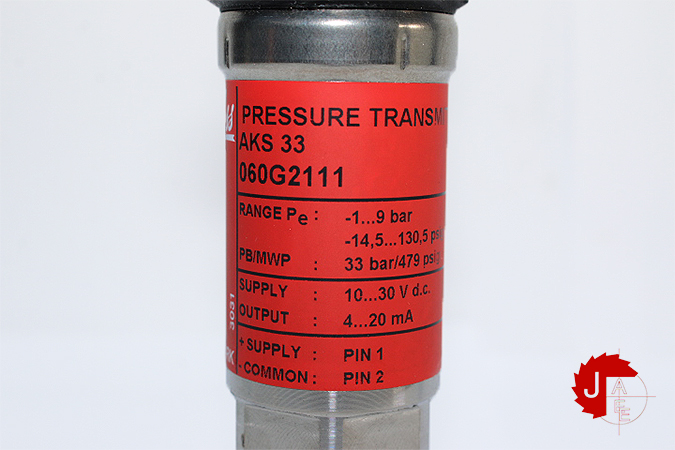

Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 3/8, Specification key: AKS 33-D631-A1AB06-0

+ supply Pin 1
– common Pin 2
Accuracy, max. [±FS%] 0.8 %
Accuracy, typical [±FS%] 0.3 %

Output signal Current
Output signal [mA] [max] 20 mA
Output signal [mA] [min] 4 mA
Overload pressure max. [bar] 33 bar
Overload pressure max. [psi] 479 psi
Packing format Multi pack
Pressure connection size 3/8
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [max] 9 bar
Pressure range [bar] [min] -1 bar
