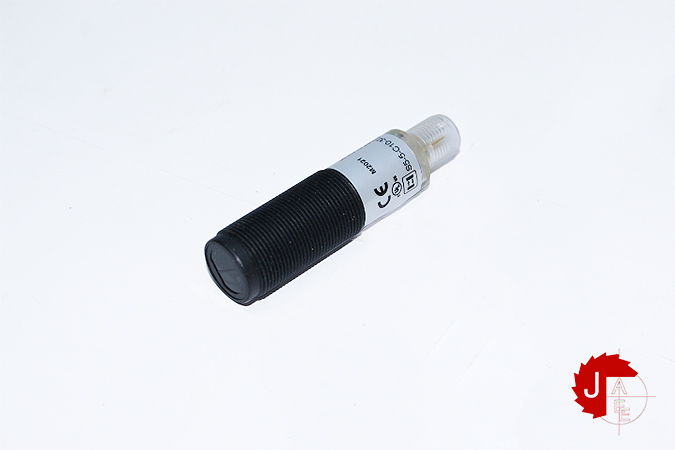

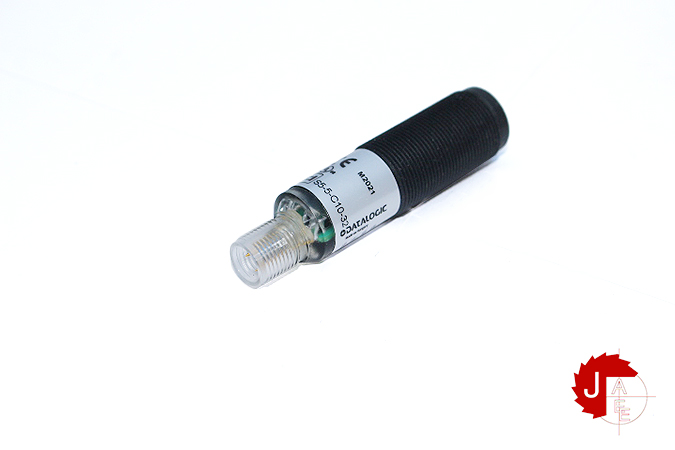

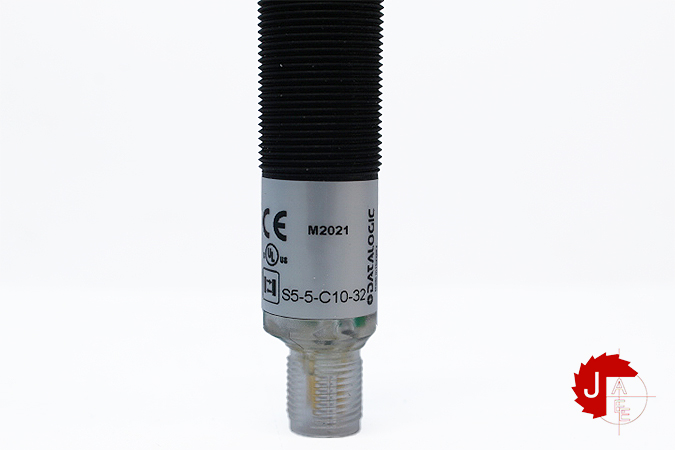

DATALOGIC S5-5-C10-32 TUBULAR PHOTOELECTRIC SENSOR

Manufacturer: DATALOGIC
Type: TUBULAR PHOTOELECTRIC SENSOR
Model: S5-5-C10-32

Power supply: 10 … 30 VDc (D.c. VERS.)
Consumption: 30 mA max. (d.c. vers.)
light emission: infrared LED 880 nm
Diffuse proximity operating distance: 1 … 10 cm
Fixed focus operating distance: 15 mm with 1 mm spot

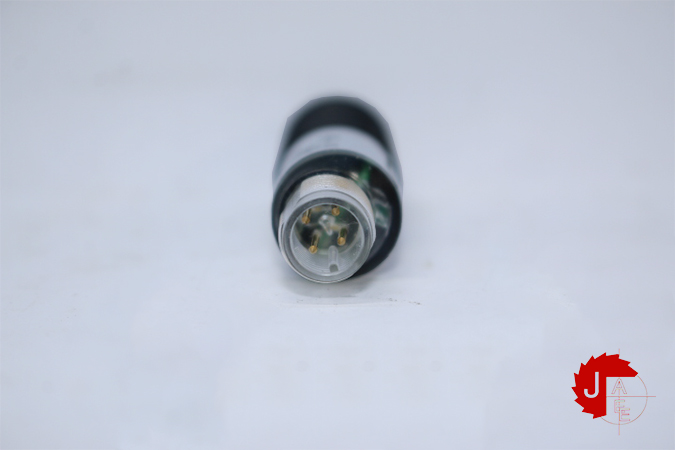

Connection: 4-pole M12 connector or 2 m Ø 5 mm cable Electrical protection: class 1 (a.c. vers.); class 2 (d.c. vers.)
Mechanical protection: IP67
Switching frequency: 1KHz (D50 vers.)

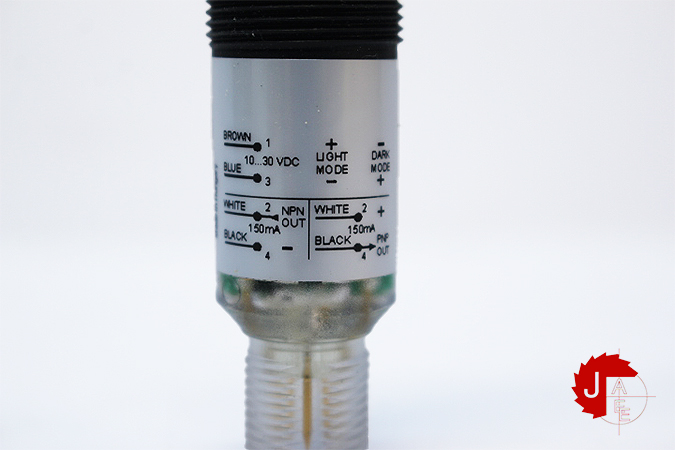

output type: NPN or PNP configurable (d.c. vers.)
