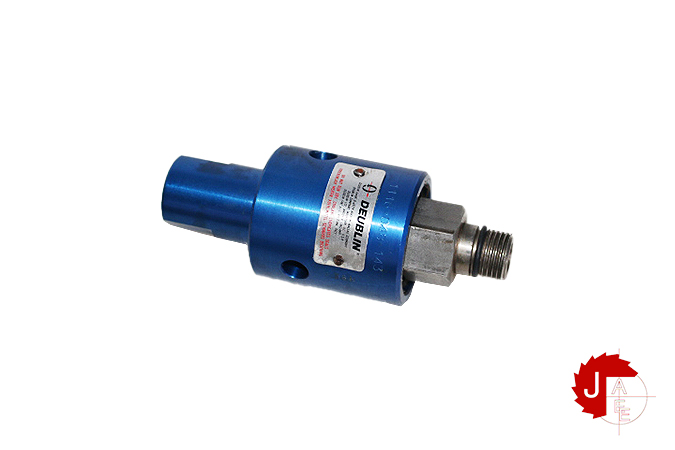

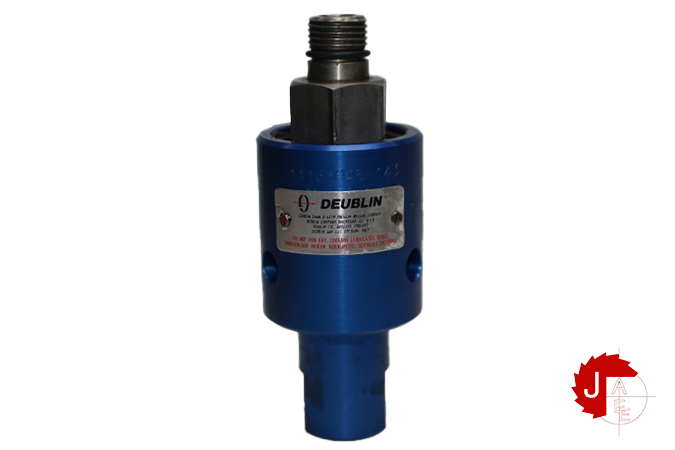

Deublin 1116-048-143 Rotary Outlet

Manufacturer: Deublin
Type: Rotary Outlet
Model: 1116-048-143

Single passage for coolant or MQL
Closed seals for transfer line and similar applications
Full-flow design has no obstructions to trap swarf or debris
Bearing-supported with threaded rotor for easy installation
Deep groove radial ball bearings for smooth operation
Labyrinth system and large vents to protect ball bearings
Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
Anodized aluminum housing and stainless steel rotor resist corrosion

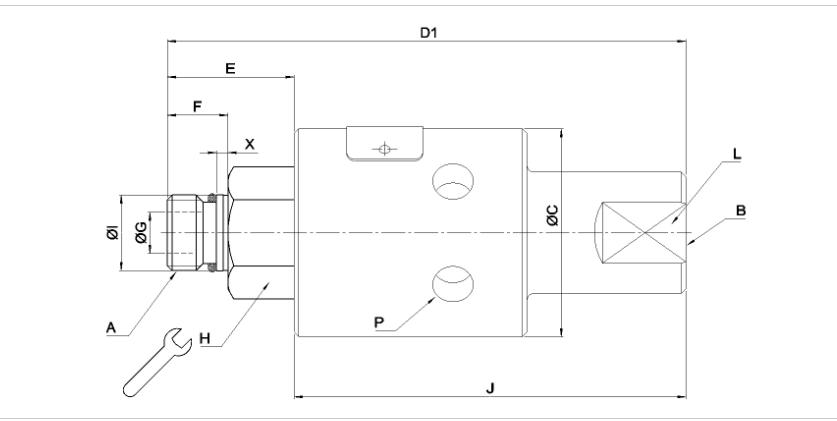

A M16x1.5 LH
B 1/4″-18 NPT
C 43.64 mm
D1 112 mm
E 30 mm
F 16 mm
G 9 mm
H 24 mm
I 16.025 mm
J 96 mm
L 22 mm
P Non-Threaded
X 5 mm
