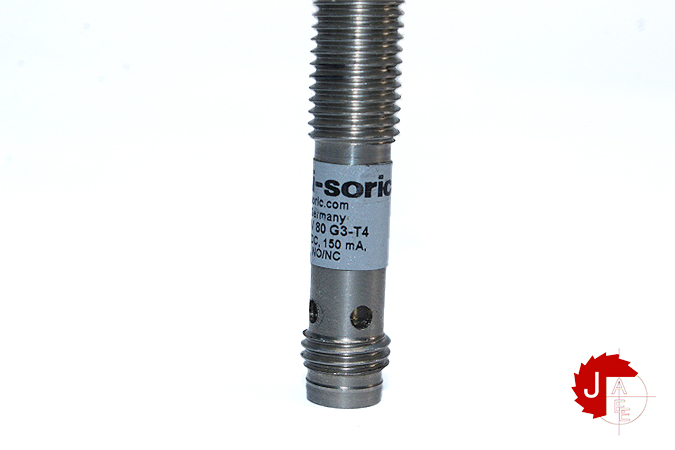

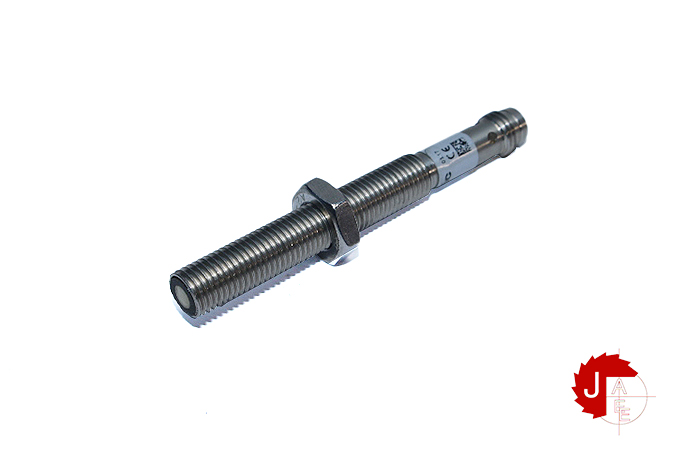

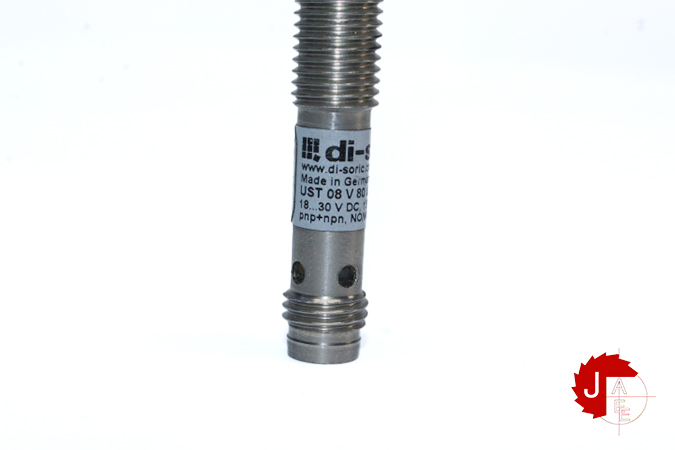

di-soric UST 08 V 80 G3-T4 Ultrasonic sensor 210539
Manufacturer: di-soric
Type: Ultrasonic sensor
Model: UST 08 V 80 G3-T4
Art No: 210539
The US-M8 is the smallest ultrasonic sensor that can be integrated into machines very easily with its compact housing dimensions. At short ranges, the US M8 offers the highest degree of flexibility even with limited installation space, and is optimal for the modernization of systems.
IO-Link
Configurable as an ultrasonic sensor or barrier
3 different teach modes
Resistant to dirt
Extremely small design
Metal casing

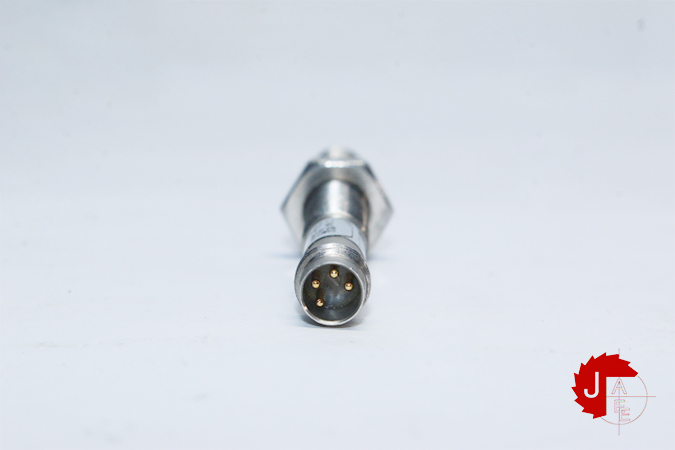

Plug connector M8
Protection class IP 67
Service voltage 18 … 30 V DC
No-load current (max.) 30 mA (24 V DC)
Thread M8 x 1
Housing length 70 mm
Transmission exit axial
Assembly distance (sensor to sensor) 60 mm
| Manufacturer | DI-SORIC |
|---|---|
| Model | UST 08 V 80 G3-T4 Ultrasonic sensor 210539 |
| Condition | New |
