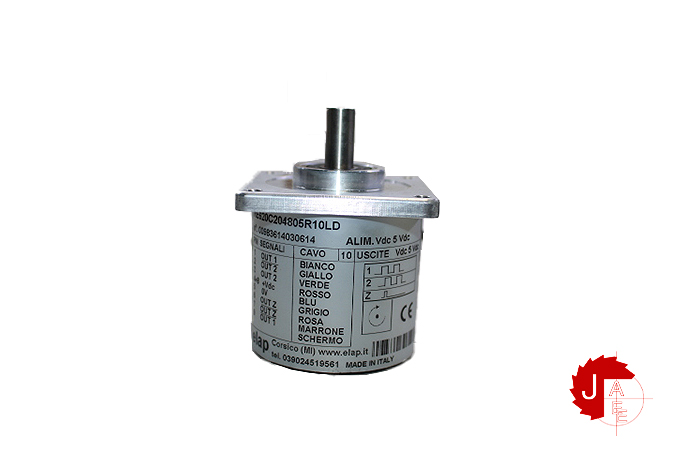

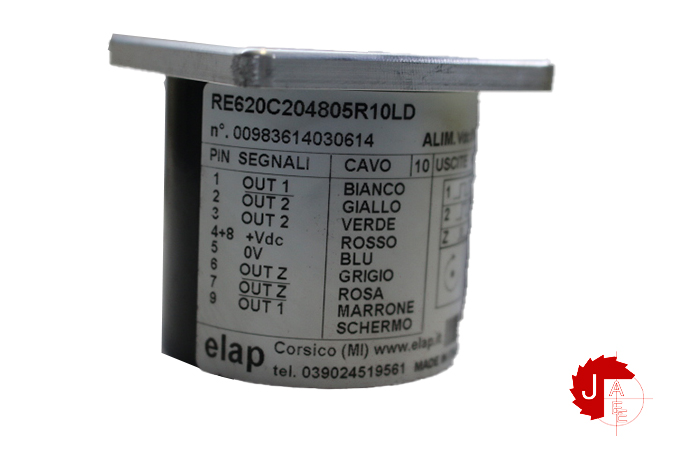

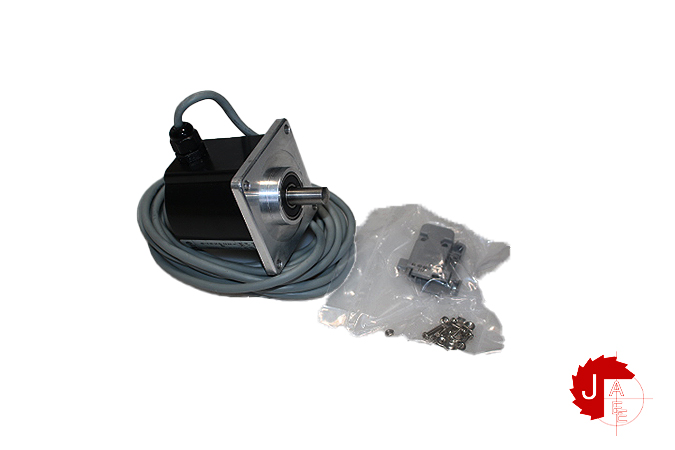

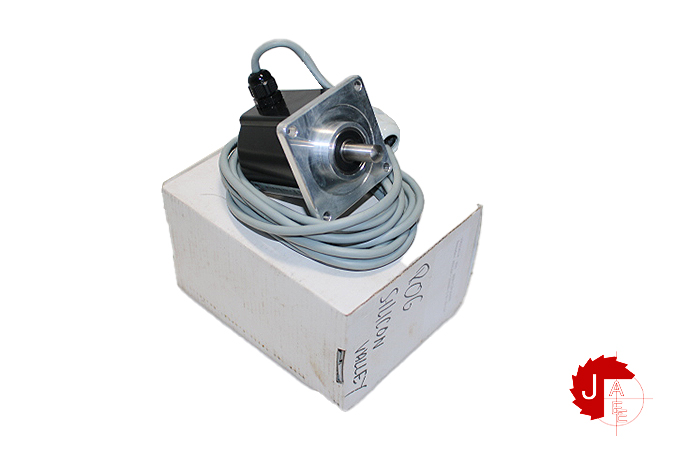

ELAP RE620C204805R10LD INCREMENTAL ROTARY ENCODERS

ELAP RE620

Manufacturer: ELAP
Type: INCREMENTAL ROTARY ENCODERS
Model : RE620C204805R10LD

• Resolution: 2048 pulses per revolution (PPR)
• Output signal: A, B, and Z channels with TTL levels
• Protection rating: IP65
• Operating temperature range: -10°C to +70°C
• Shaft diameter: 10mm
• Housing diameter: 58mm
• Housing material: aluminum
• Maximum speed: 6000 RPM
• Connector options: cable or M23 connector
• Mounting: through hollow shaft with clamping ring
