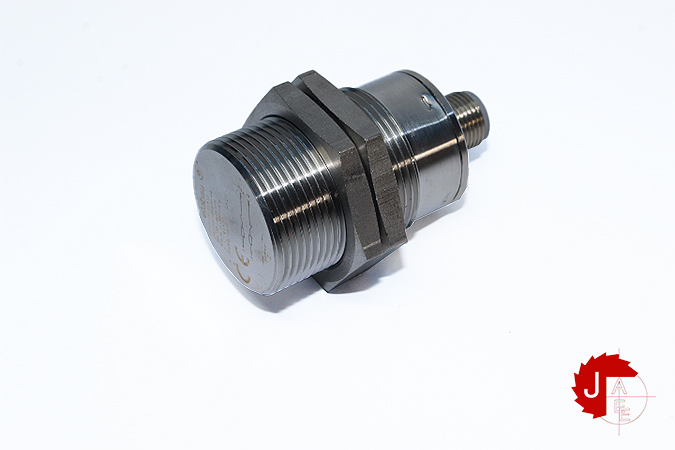

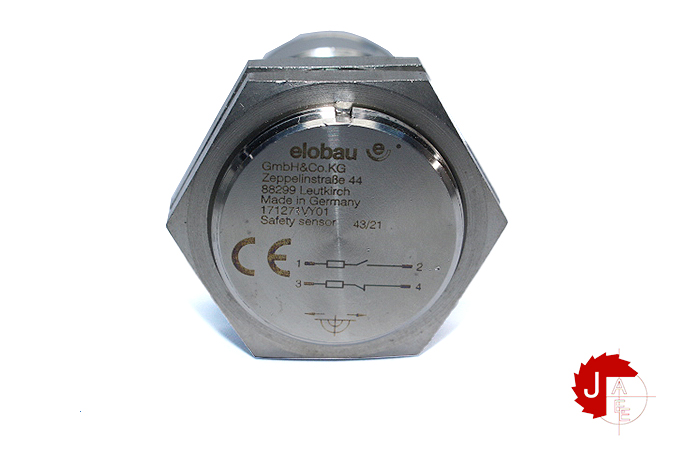

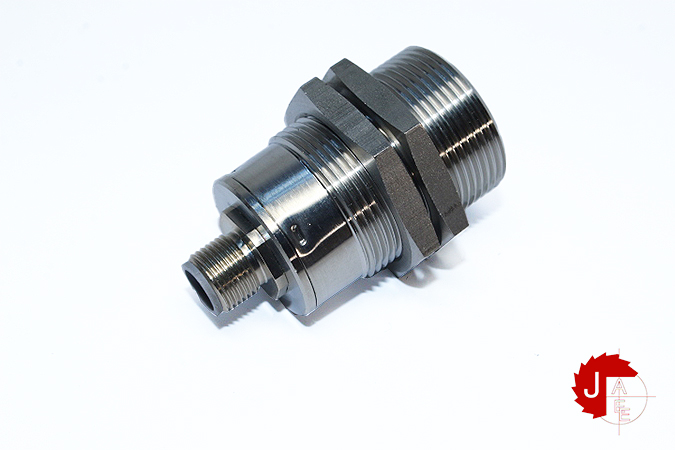

elobau 171271VY01 Safety sensor magnetically actuated With Actuator

elobau 171271VY01 Safety sensor magnetically actuated With Actuator

Manufacturer: elobau
Type: Safety sensor magnetically actuated With Actuator
Model: 171271VY01

Actuation Type Front
Assured Switch Off Distance 16 mm
Assured Switching Distance 4 mm

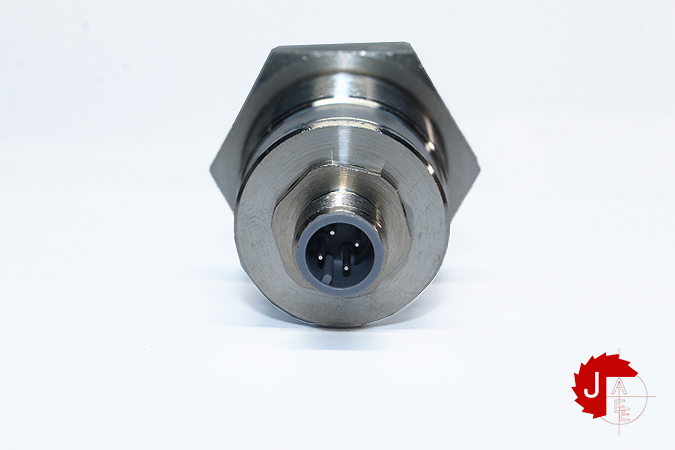

Connector Size M12 x 1
Connector Type 4 Pin
Contact Form NO/ NC
Degree Of Pollution 3
Housing Color Silver
Housing Design Cylindrical
Housing Material Stainless Steel
Installation Arbitrary
IP Rating IP67

Max. Switching Voltage 28.8V DC
Min. Operating Temp. -25 Deg. C
Min. Storage Temp. -25 Deg. C
Min. Switching Voltage 19.2V DC
Minimum Switching Distance 0.5 mm
Mounting Type Fastening Nut
Nut Material Stainless steel
