Elobau 462121H1U202 Safety relay 46212

elobau 462121H1U202 Safety relay 46212

Manufacturer: Elobau
Type: Safety relay
Model: 462121H1U202
Part No: 46212

PLe/SIL3/Cat.4
Supply voltage 24V AC and DC

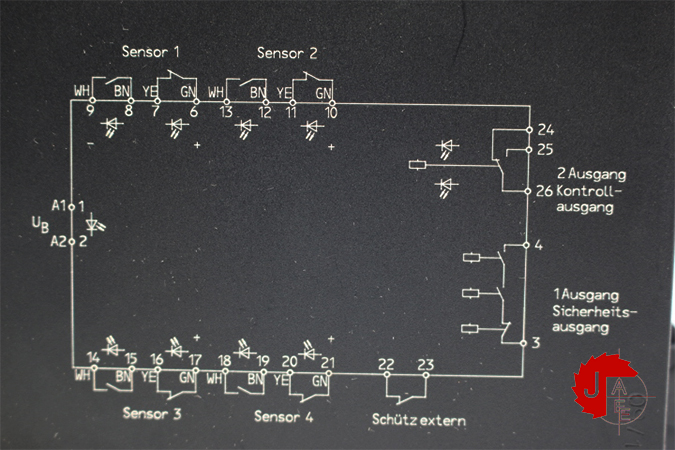

Connection for 4 sensors normally open/ normally closed
Monitoring of connected contactors (EDM)
Very compact design
1 relay safety output potential-free SIL3/PLe/Kat.4
1 control output changeover contact potential-free
LEDs for status and error indication

ax. switching voltage at safety output 30 V DC
Max. switching voltage at control output 30 V DC
Max. switching voltage at safety output 250 V AC
Max. switching voltage at control output 250 V AC
Max. switching current at safety output 4 A
