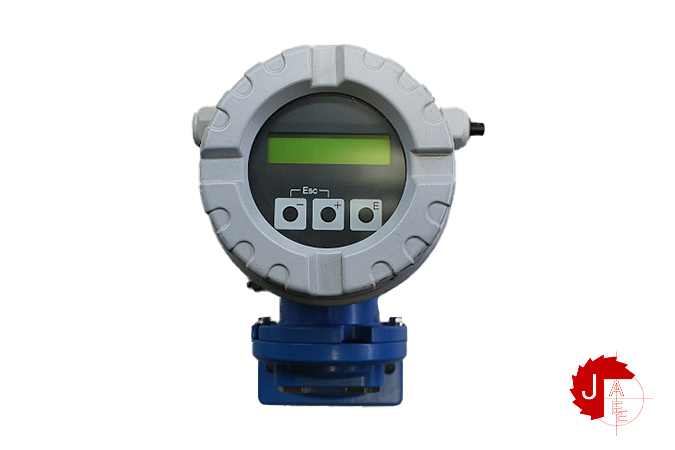

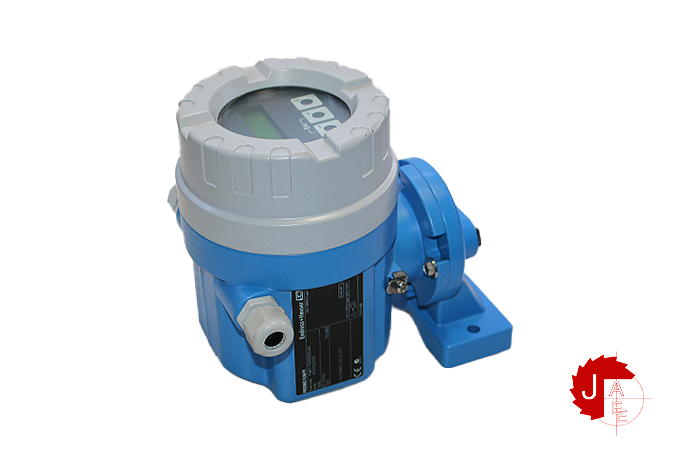

ENDRESS+HAUSER 91WA1-11DA00ACA4AA Ultrasonic flow meter

Manufacturer: ENDRESS+HAUSER

Type: Ultrasonic flow meter

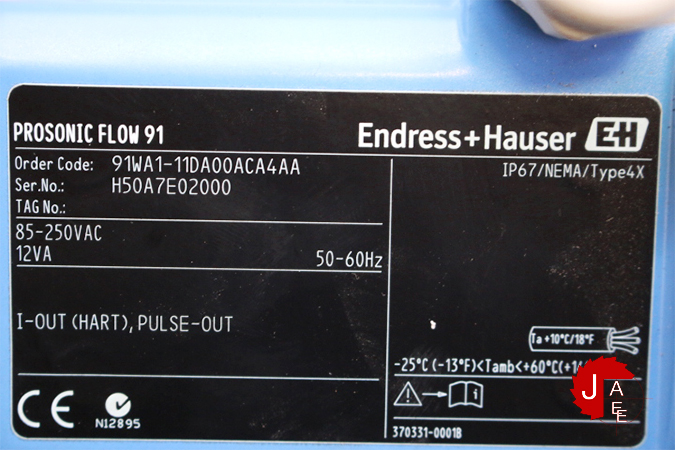

Model: 91WA1-11DA00ACA4AA

Specs at a glance

• Max. measurement error

  Volume flow:
  ±3% o.r. for DN15
  ±2% o.r. for DN25 to 200
  ±2% o.r. above DN200

• Measuring range

  0.3 to 10 m/s (1 to 33 ft/s)

• Medium temperature range

  -20 to +80°C (-4 to +176 °F)
  0 to +130°C (32 to +265 °F) option

• Max. process pressure

  N/A

• Wetted materials

  Clamp on system:
  Sensor holder 1.4308/CF-8
  Sensor housing 1.4301/304
  Strapping bands 1.4301/304
