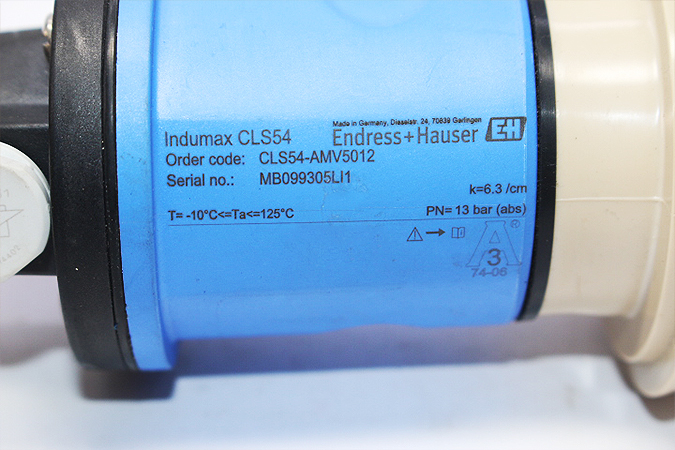

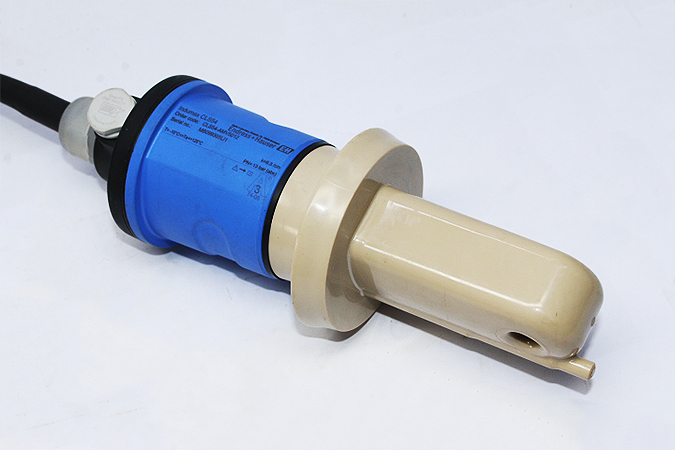

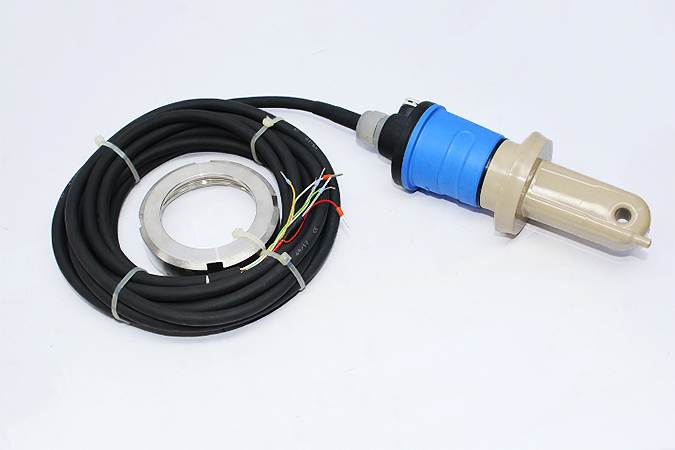

ENDRESS+HAUSER CLS54 Analog conductivity sensor CLS45-AMV5012

ENDRESS+HAUSER CLS54 Analog conductivity sensor CLS45-AMV5012

Manufacturer: ENDRESS+HAUSER
Type: Analog conductivity sensor
Model: CLS54
Part No: CLS45-AMV5012

Measuring principle Inductive

Application Food, beverage and pharmaceutical industries and in biotechnology.

Characteristic
Specifically intended for use in hygienic applications and especially suitable for following applications:
Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring.

Measurement range 100 µS/cm – 2000 mS/cm Cell constant k: 6,3 1/cm

Measuring principle Inductive conductivity measurement

Design
Hygienic design with food-grade virgin PEEK body in jointless and creviceless design including all hygienic certifications.

Material
In contact with medium: Virgin PEEK
Surface roughness: Ra<0.9µm

Process temperature
Process temperature: -10°C – +125°C
(14°F – 257°F)
Sterilisation: 150°C/5 bar (max. 60 min.)
(302°F / 72.5 psi)

Process pressure
12 bar(174 psi)/20°C(68°F)
8 bar(116 psi)/125°C(257°F)

Temperature sensor
Pt1000 (class A)with a temperature response time T90 < 27s.

Ex certification
ATEX II G EEx ia IIc T3/T4/T6
FM/CSA IS NI CL.I,II,III,Div.1&2 group A-G in connection with the transmitter CM42.

Connection

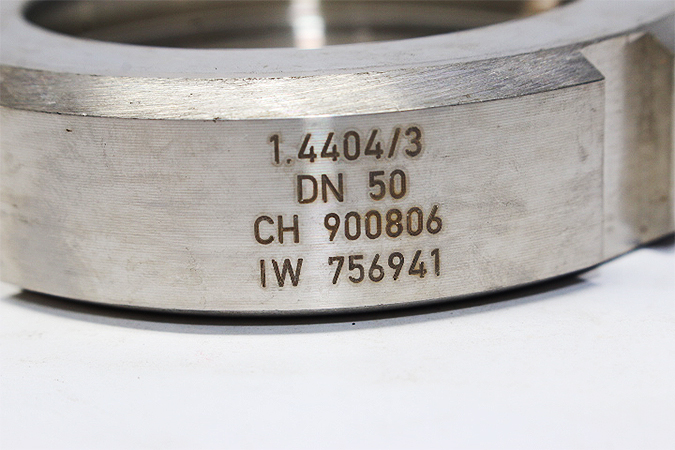

Dairy pipe, Aseptic-fitting, Clamp ISO 2852, SMS-2″, Varivent N DN 40-125, Neumo Biocontrol D50.

Ingress protection
IP68/NEMA6P

Additional certifications
FDA, EHEDG, 3-A, Biological reactivity (USP class VI part 87 and 88)
