Endress+Hauser FTW33 Conductive Point level detection Liquipoint

Manufacturer: Endress+Hauser
Type: Conductive Point level detection Liquipoint

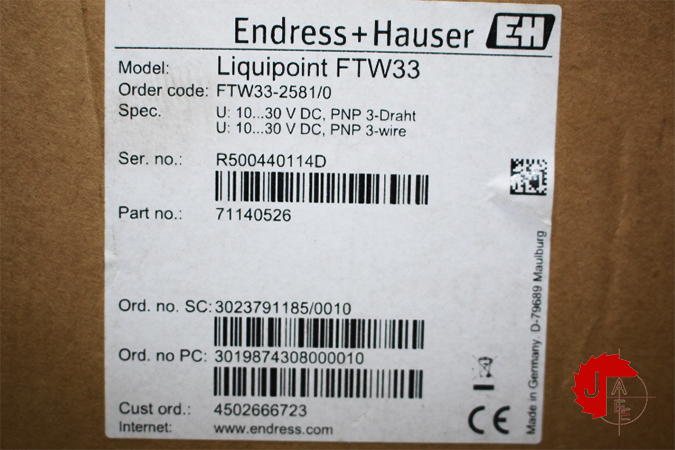

Model: FTW33

Conductive Point level detection Liquipoint

Measuring principle Conductive Characteristic / Application

Compact point level switch for using in pipes and in storage, mixing and process vessels with or without an agitator, for water based or oil based media, with active build up compensation,flush mounting

Specialities
CIP and SIP suitable
Conductive foam is detectable or can be switched off

Supply / Communication 10…30 V DC
Ambient temperature -40 … 70°C

Process temperature Standard: -20 … 100°C
Cleaning: -20 … 150°C for 1h

Process pressure / max. overpressure limit Vacuum … 25 bar
Main wetted parts Sensor: 316L
Sensor isolation: PEEK

Process connection Thread G3/4
Communication DC PNP

H1=21 mm
H2=58 mm
H3=41 mm
H4=16 mm
H5=28 mm
H6=2 mm
