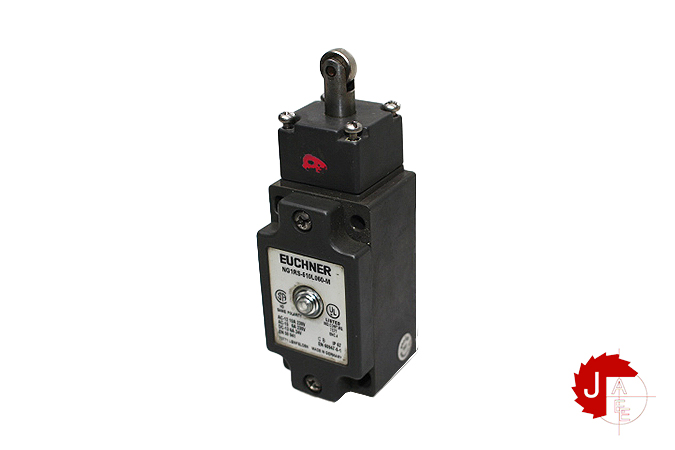

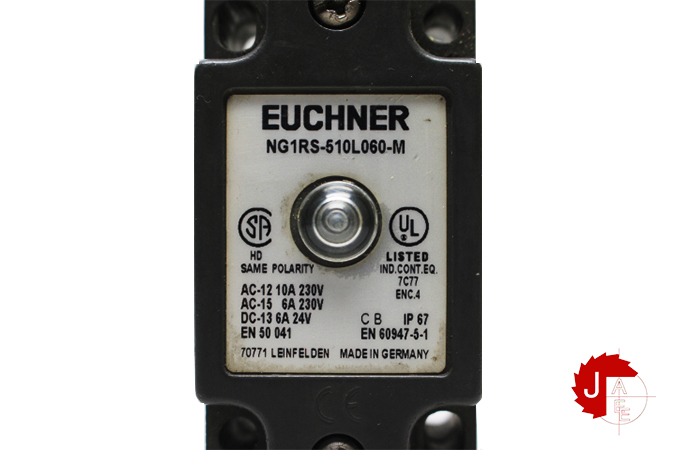

EUCHNER NG1RS-510L060-M Position switch

Manufacturer: EUCHNER
Type: Position switch
Model: NG1RS-510L060-M

Connection cross section 0.34 … 1.5 mm²
Display module
AC/DC 12 … 60 … 60 V LED red
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 6 A 24 V
AC-12 10 A 230 V
AC-15 6 A 230 V
Short circuit protection according to IEC 60269-1 6A gG
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 6 A
Actuating force 15 … 30 N
Degree of protection IP67
