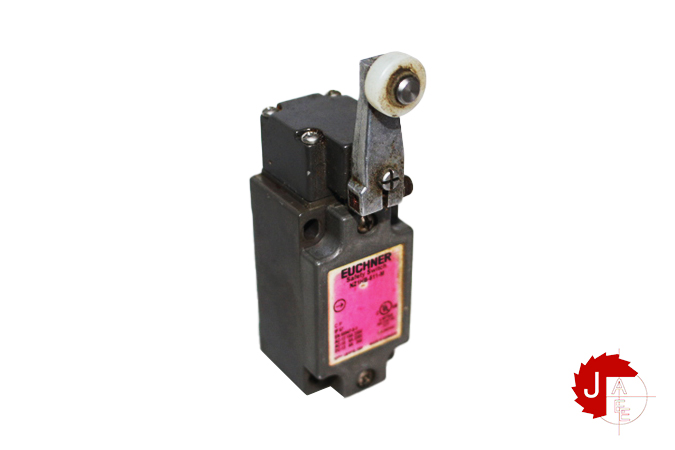

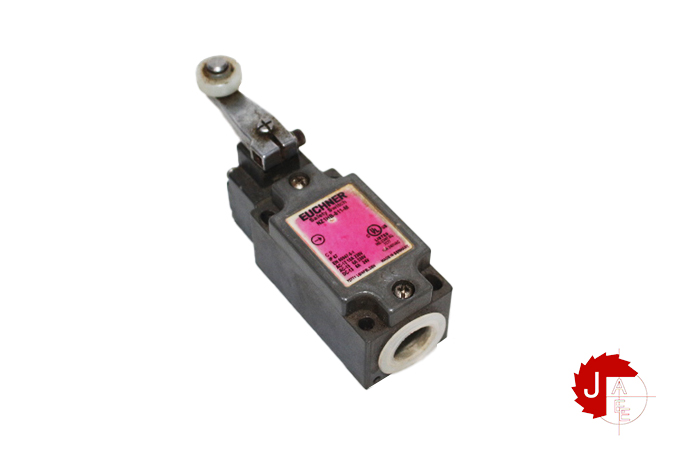

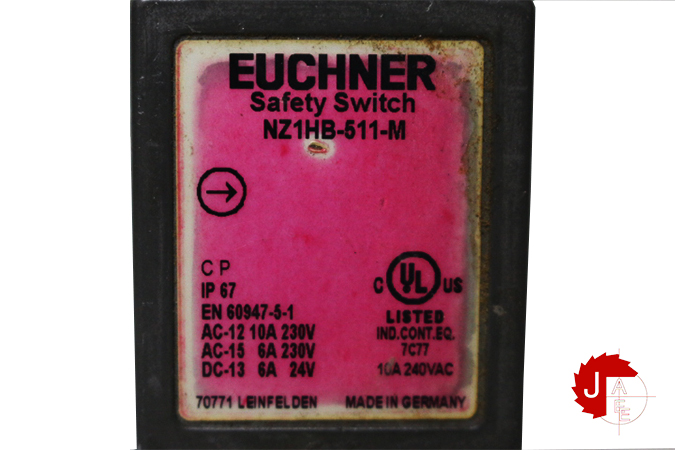

Manufacturer: EUCHNER
Type: Safety switch
Model: NZ1HB-511-M
Connection cross section 0.34 … 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-136 A 24 V
AC-1210 A 230 V
AC-156 A 230 V
Approach speed 0.1 … 300 m/min
Connection type
1 x M20 x 1.5
Number of NO contacts 1
Number of door position positively driven contacts 1
Actuating element
Slide bearing plastic Lever arm
Actuating force min. 15 N
Installation orientation any
Mechanical life 30 x 10⁶
Contact bounce time max. 3 ms
Switching principle Snap-action switching contact
Contact closing time max. 4 ms
Degree of protection IP67
| Manufacturer | EUCHNER |
|---|---|
| Model | NZ1HB-511-M Safety Switch |
| Condition | New |
