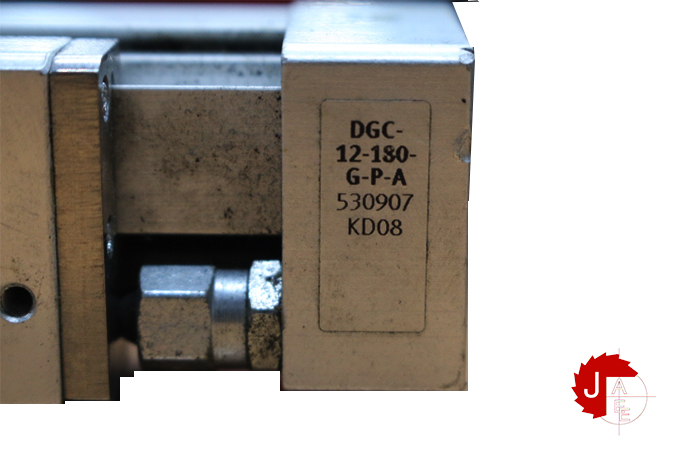

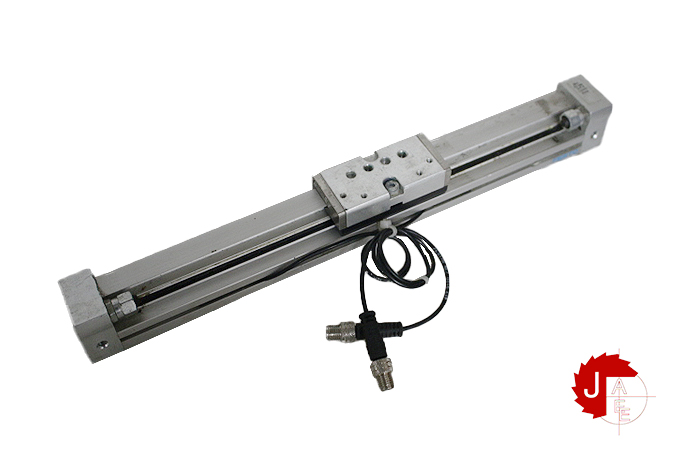

FESTO DGC-12-180-G-P-A Linear actuator 530907

Manufacturer: FESTO
Type: Linear actuator
Model: DGC-12-180-G-P-A
Part No: 530907

Stroke 180 mm
Piston diameter 12 mm
Cushioning Elastic cushioning rings/pads at both ends
Pneumatic shock absorber, hard characteristic curve
Pneumatic shock absorber, soft characteristic curve

Mounting position Any
Guide Basic guide
Recirculating ball bearing guide Position sensing
For proximity sensor Variants
Additional slide, standard, on left
Additional slide, standard on right
Operating pressure 0.25 MPa … 0.8 MPa

Theoretical force at 6 bar, retracting 68 N
Theoretical force at 6 bar, advancing 68 N
