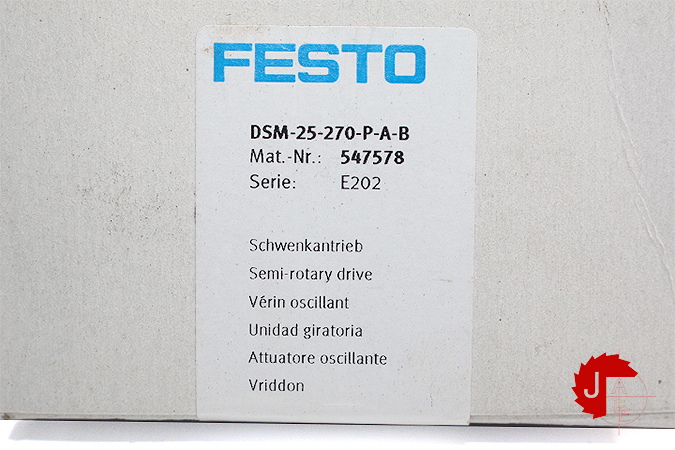

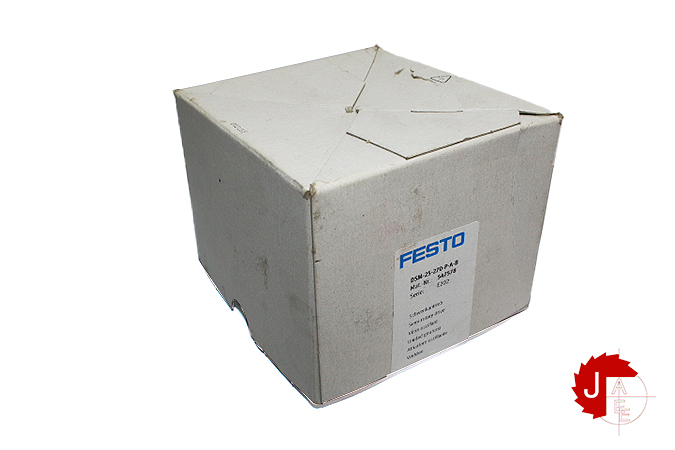

FESTO DSM-25-270-P-A-B Rotary actuator 547578

FESTO DSM-25-270-P-A-B Rotary actuator 547578

Manufacturer: FESTO
Type: Rotary actuator
Model: DSM-25-270-P-A-B
Part No: 547578

Size 25
Cushioning angle 1.2 deg
Adjustment range of swivel angle 0 deg … 270 deg
Swivel angle 0 deg … 270 deg
Cushioning Elastic cushioning rings/pads at both ends
Mounting position Any
Precision adjustment-6 deg
Mode of operation Double-acting
Structural design Rotary vane
Position sensing For proximity sensor
Symbol 00991265
Operating pressure 0.15 MPa … 1 MPa
Operating pressure 1.5 bar … 10 bar
Max. swivel frequency at 6 bar 2 Hz
