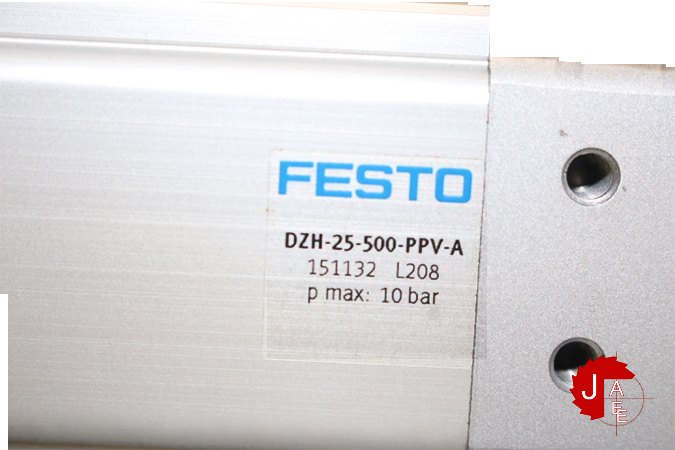

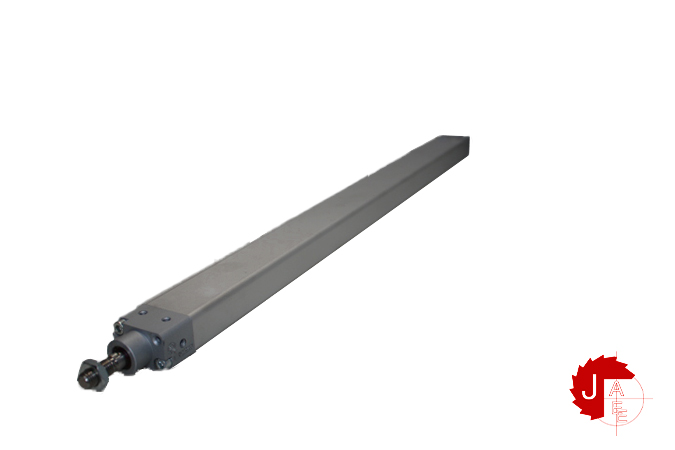

FESTO DZH-25-500-PPV-A Flat cylinder 151132

SKU: 0995856 Category: Tags: ,

Only 1 item left.

151132datasheet



  • Stroke500 mm
  • Piston diameter25 mm Equivalent diameter
  • Torsional backlash at piston rod +/-2.4 deg
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Mode of operationDouble-acting
  • DesignPiston Piston rod
  • Position detectionVia proximity switch
  • Symbol00991235
  • Protection against torque/guideOval piston
  • Operating pressure0.1 MPa … 1 MPa
  • Operating pressure1 bar … 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 – Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C … 80 °C
  • Cushioning length17 mm
  • Max. torque for protection against torsion0.8 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
  • Additional weight per 10 mm stroke21 g
  • Basic weight for 0 mm stroke330 g
  • Type of mountingEither: Via female thread With accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Material coverAluminium
  • Material sealsTPE-U(PU)
  • Material housingAluminium
  • Material piston rodHigh-alloy steel
Manufacturer FESTO
Model DZH-25-500-PPV-A
Condition New
