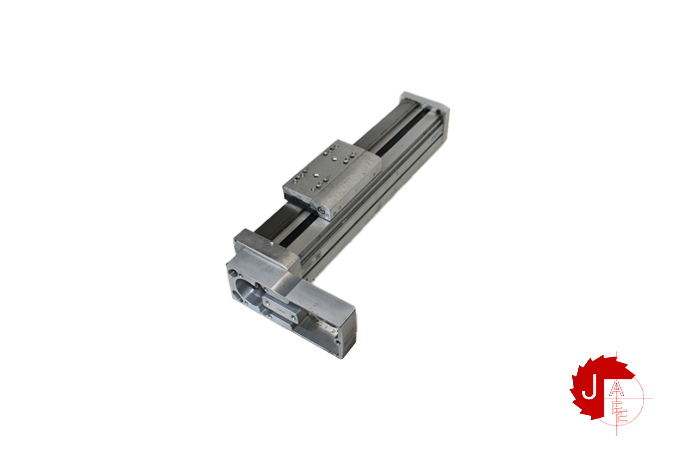

FESTO EGC-80-200-BS-10P-KF-OH-ML-GK Parallel gripper 3013533

Manufacturer: FESTO
Type: Ball screw linear actuator

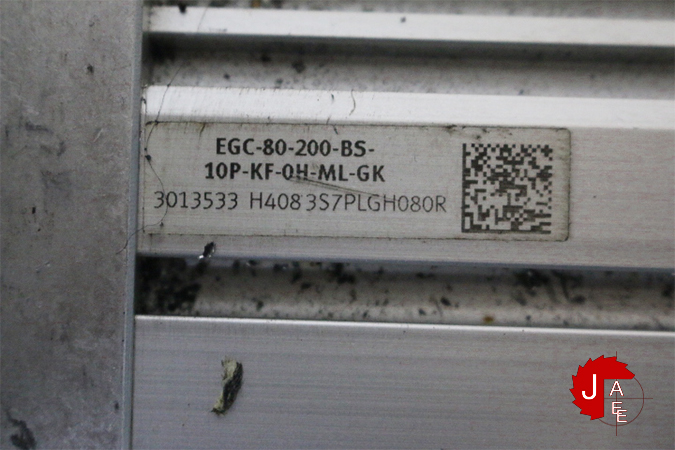

Model: EGC-80-200-BS-10P-KF-OH-ML-GK
Part No: 3013533

Feature Value Working stroke 200 mm
Size 80
Screw diameter 15 mm
Mounting position Any Guide Recirculating ball bearing guide
Structural design Electromechanical linear axis with ball screw
Motor type Stepper motor Servo motor
Spindle type Ball screw
Max. acceleration 15 m/s²
Max. speed 0.5 m/s … 1 m/s
Repetition accuracy ±0.02 mm
Duty cycle 100%
