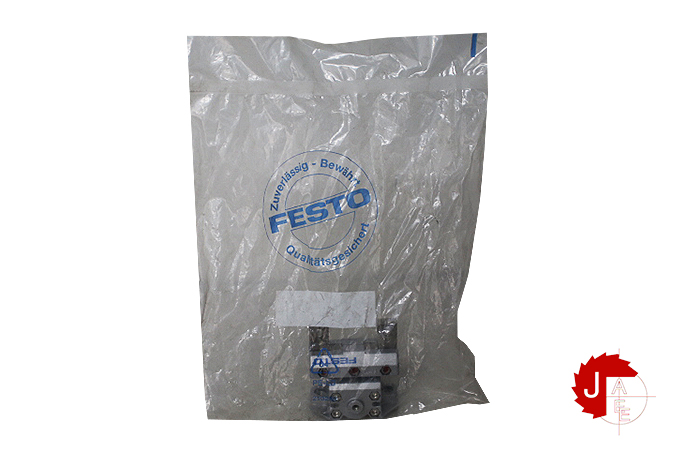

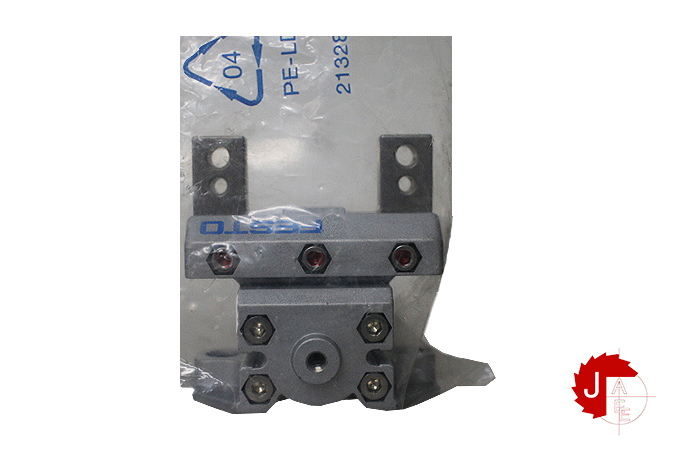

FESTO HGPC-20-A Parallel gripper 539271

Manufacturer: FESTO
Type: Parallel gripper

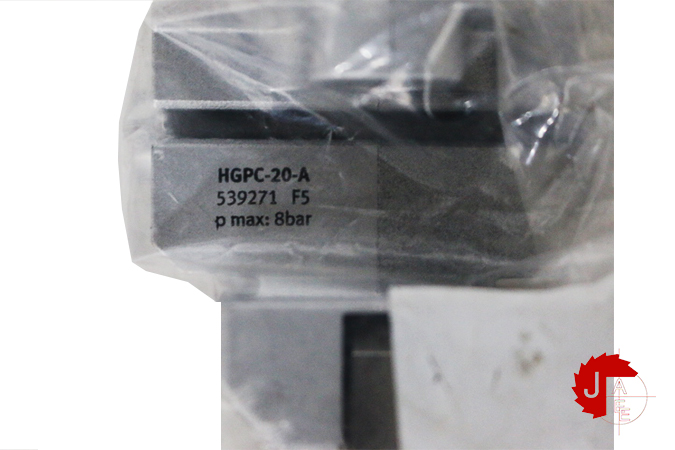

Model: HGPC-20-A
Part No: 539271

Size 20
Stroke per gripper jaw 7 mm
Max. replacement accuracy <= 0.2 mm
Max. angular gripper jaw backlash ax,ay 0 deg
Max. gripper jaw backlash Sz 0 mm
Rotationally symmetrical <= 0.2 mm Repetition accuracy, gripper <= 0.05 mm Number of gripper fingers 2 Assembly position Any Mode of operation double-acting Gripper function Parallel Design structure Inclined plane guided motion sequence Position detection For proximity sensor Total force at 6 bar, opening 126 N Total force at 6 bar, closing 126 N Operating pressure 2 … 8 bar Max. operating frequency of gripper 4 Hz Min. opening time at 6 bar 90 ms Min. closing time at 6 bar 90 ms
