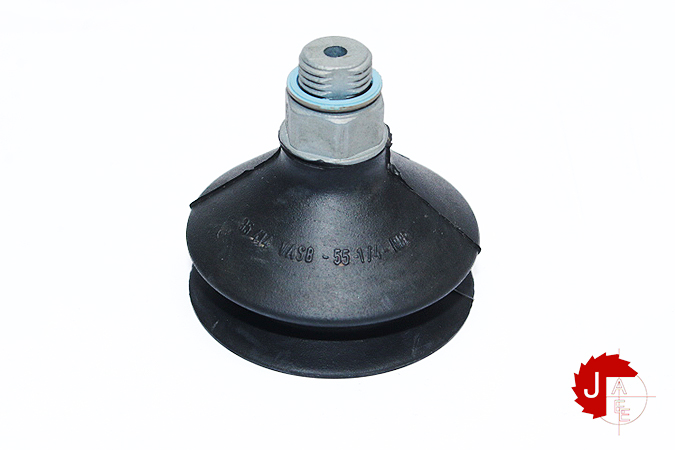

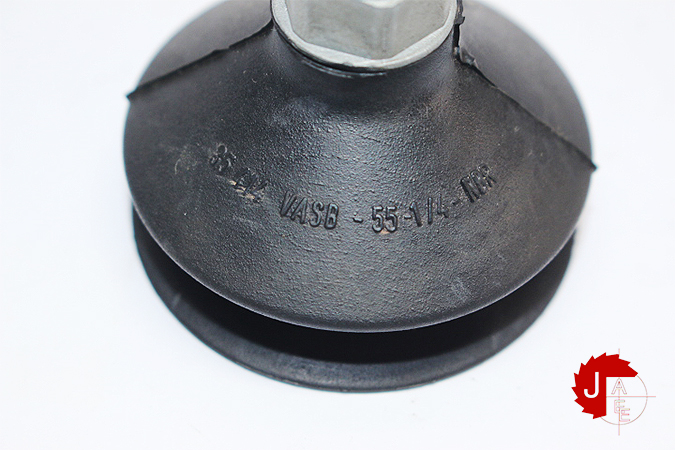

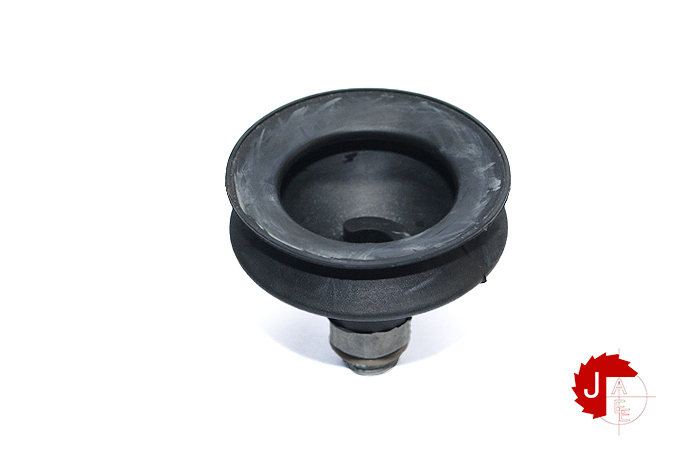

FESTO VASB-55-1/4-NBR Suction cup complete 35414

FESTO VASB-55-1/4-NBR Suction cup complete 35414

Manufacturer: FESTO
Type: Suction cup complete
Model: VASB-55-1/4-NBR
Part No: 35414

Nominal size 4 mm
Suction cup diameter 55 mm
Effective suction diameter 44 mm
Position of connection Top
Symbol 00991485
Suction cup shape Round bellows 1.5 convolutions
Operating pressure -0.095 MPa … 0 MPa
Operating pressure -0.95 bar … 0 bar
Operating pressure -13.775 psi … 0 psi
Nominal operating pressure -0.07 MPa
Nominal operating pressure -0.7 bar
Nominal operating pressure -10.15 psi
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity VDMA24364-A1-L
Ambient temperature -20 °C … 80 °C
Breakaway force at 70% vacuum 106 N
Holding force at nominal operating pressure 106 N
Mounting thread G1/4
