- Stroke1 40 mm
- Piston diameter 25 mm
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Mode of operationSingle-acting
- Piston rod endExternal thread
- Structural designPiston Piston rod
- Position sensingFor proximity sensor
- Symbol00991202
- VariantsThrough piston rod
- Operating pressure0.15 MPa … 1 MPa
- Operating pressure1.5 bar … 10 bar
- Operating pressure21.75 psi … 145 psi
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Ambient temperature-20 °C … 80 °C
- Impact energy in the end positions0.07 J
- Theoretical force at 6 bar, advancing42 N
- Type of mountingOptionally: With through-hole With accessories
- Pneumatic connectionM5
- Flange screws materialHigh-alloy stainless steel
- Cover materialWrought aluminum alloy
- Material of dynamic sealsNBR TPE-U(PU)
- Piston rod materialHigh-alloy stainless steel
- Material of cylinder barrelWrought aluminum alloy
| Manufacturer | FESTO |
|---|---|

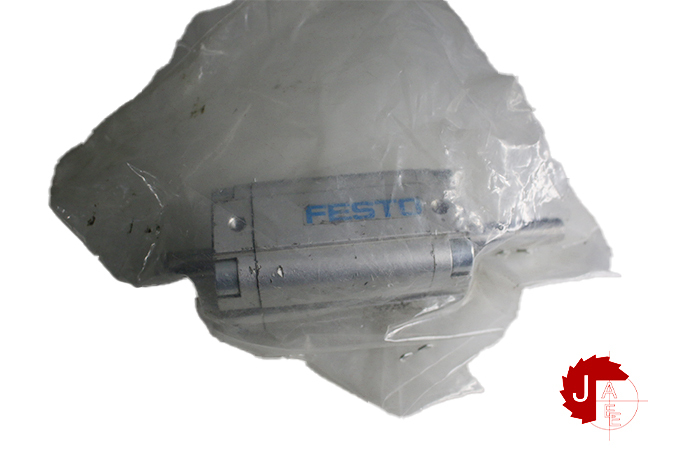

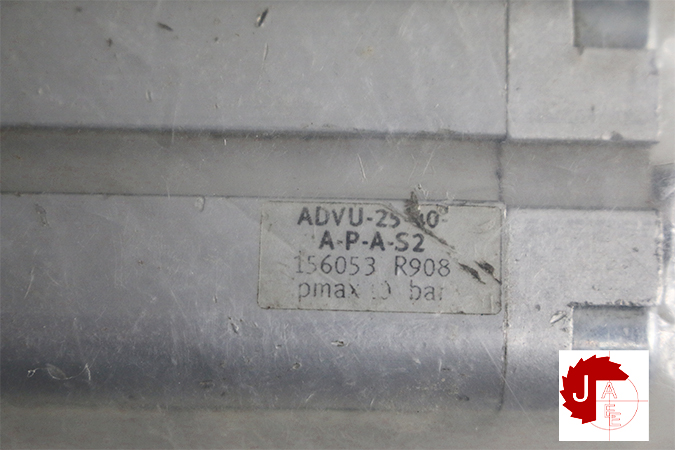

| Model | ADVU-25-40-A-P-S2 156053 Compact air cylinder |
| Condition | New |
