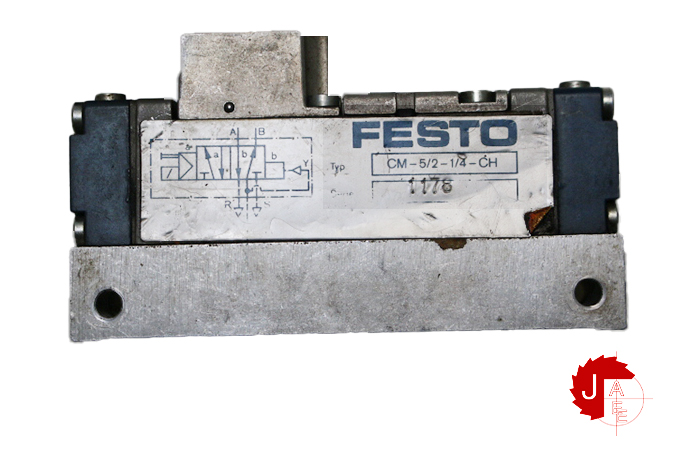

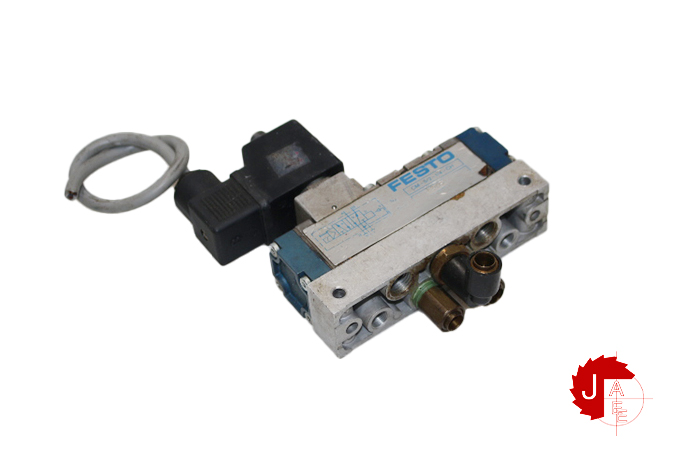

FESTO CJM-5/2-1/4-CH 5/3Directional valve

Manufacturer: FESTO

Type: Single Solenoid Valve

Model: CJM-5/2-1/4-CH

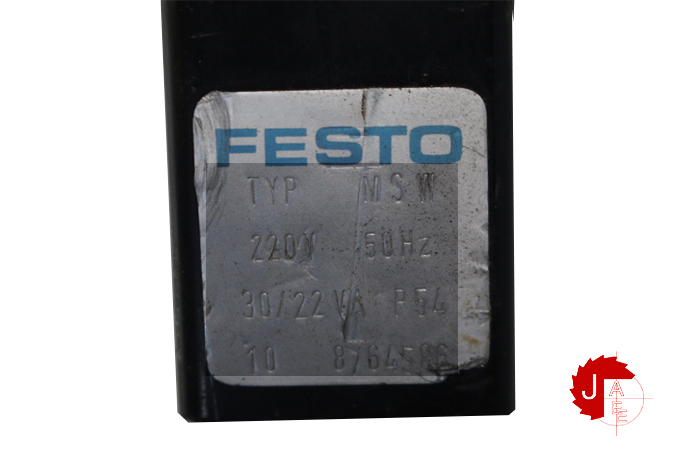

With 2* coil 220v 50Hz 12w

Valve function 5/2 double solenoid
Type of actuation Electric
Standard nominal flow rate 1400 l/min
pneumatic working port Sub-base
Operating pressure 1.5 bar … 10 bar
Nominal size 6.5 mm
Mounting position optional
Manual override Non-detenting
Type of piloting Pilot actuated
Flow direction Non-reversible
Symbol 00991005
Max. switching frequency 40 Hz
Switching time on 28 ms
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will
always be required)
LABS (PWIS) conformity VDMA24364 zone III
Media temperature -10 °C … 60 °C
Type of mounting On sub-base
Pilot air port 12 G1/8
Pilot air port 14 G1/8
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Pneumatic connection, port 3 G1/4
Pneumatic connection, port 4 G1/4
Pneumatic connection, port 5 G1/4
