- Valve function3/2, closed, monostable
- Actuation typeElectrical
- Width14 mm
- Standard nominal flow rate900 l/min
- Pneumatic working portG1/8
- Operating voltage24V DC
- Operating pressure0.25 MPa … 0.8 MPa
- Operating pressure2.5 bar … 8 bar
- Structural designPiston gate valve
- Reset methodPneumatic spring
- Certificationc UL us – Recognized (OL)
- Maritime classificationSee certificate
- Degree of protectionIP65 With plug socket as per IEC 60529
- Nominal width6 mm
- Sealing principleSoft
- Mounting positionAny
- Manual overrideDetenting via accessory Non-detenting
- Type of controlPilot-controlled
- Pilot air supply portInternal
- Flow directionNon-reversible
- Symbol00991655
- Valve position IDLabel holder
- LapOverlap
- Switching time off27 ms
- On switching time16 ms
- Duty cycle100% in combination with holding current reduction
- Max. positive test pulse with 0 signal1200 µs
- Max. negative test pulse on 1 signal900 µs
- Coil characteristics24 V DC: 1.28 W
- Permissible voltage fluctuations-15 % / +10 %
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Temperature of medium-5 °C … 50 °C
- Ambient temperature-5 °C … 50 °C
- Product weight60 g
- Electrical connection2-pin
- Type of mountingWith through-hole
- Pilot exhaust air port 82M3
- Pilot air port 12M3
- Pneumatic connection 1G1/8
- Pneumatic connection 2G1/8
- Pneumatic connection 3G1/8
- Note on materialsRoHS-compliant
- Seals materialNBR
- Housing materialDie-cast aluminum
| Manufacturer | FESTO |
|---|---|

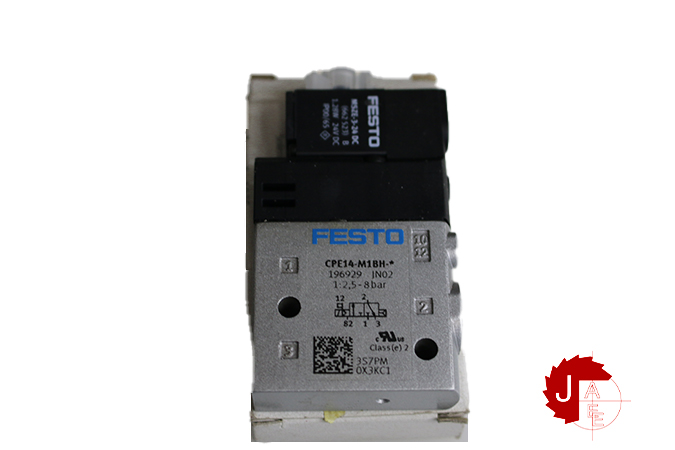

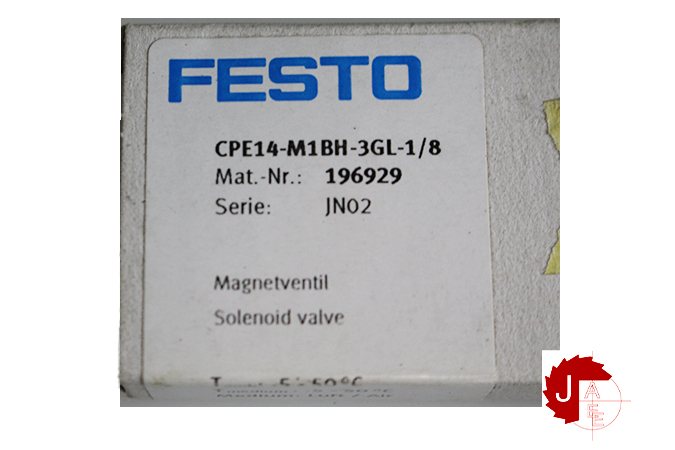

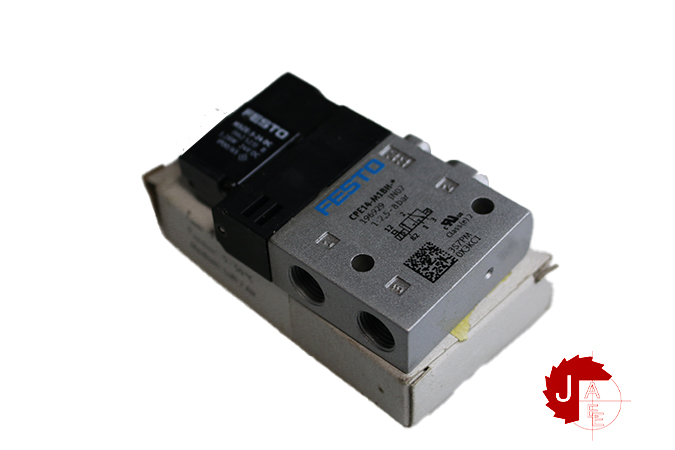

| Model | CPE14-M1BH-3GL-1/8 196929 Air solenoid valve |
| Condition | New |
