- Valve function3/2, closed, monostable
- Actuation typeElectrical
- Width18 mm
- Standard nominal flow rate1300 l/min
- Pneumatic working portG1/4
- Operating voltage24V DC
- Operating pressure0.25 MPa … 1 MPa
- Operating pressure2.5 bar … 10 bar
- Structural designPiston gate valve
- Reset methodPneumatic spring
- Certificationc UL us – Recognized (OL)
- Maritime classificationSee certificate
- Degree of protectionIP65 With plug socket as per IEC 60529
Air Preparation Equipment

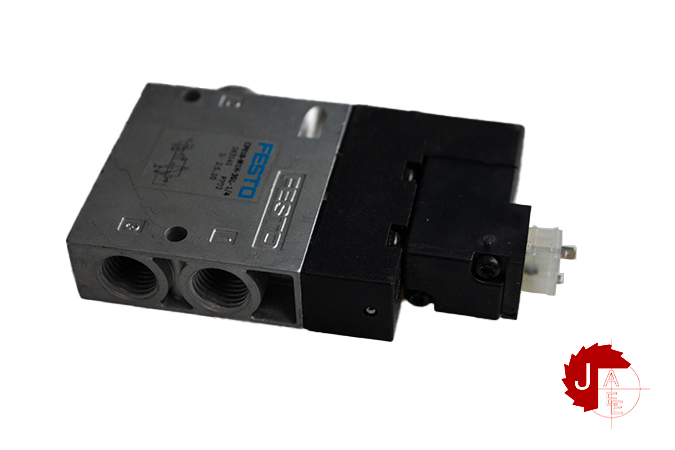

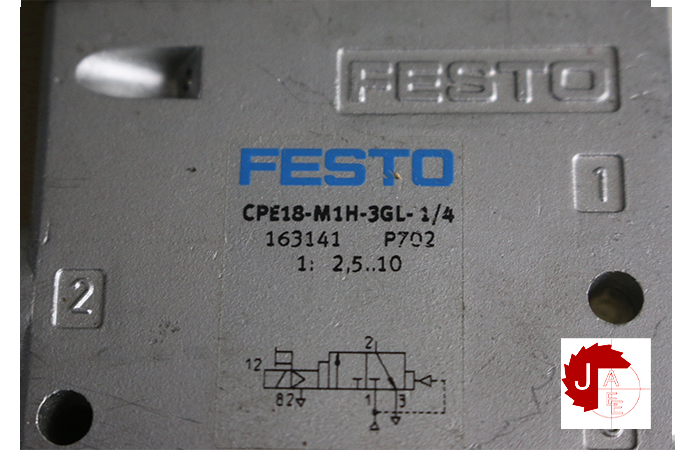

FESTO CPE18-M1H-3GL-1/4 163141 Air solenoid valve
Manufacturer | FESTO |
---|---|
Model | CPE18-M1H-3GL-1/4 |
Condition | Used |
