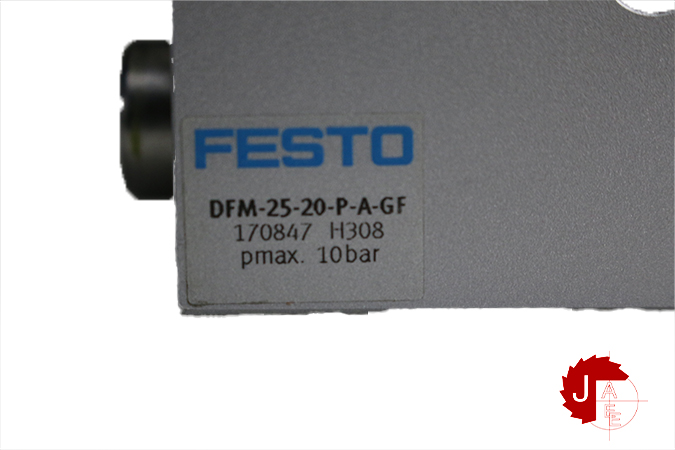

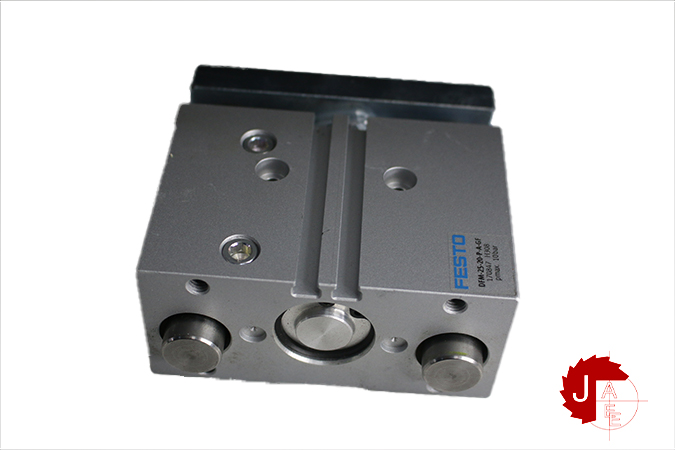

FESTO DFM-25-20-P-A-GF 170847 Guided actuator

SKU: 0995761 Category: Tags: ,

Only 4 items left.

170847datasheet

Manufacturer: FESTO
Type: Guided actuator
Model: DFM-25-20-P-A-GF
Part NO.: 170847



  • Distance of centre of gravity of payload to yoke plate xs50 mm
  • Stroke20 mm
  • Piston diameter25 mm
  • Drive unit operating modeYoke
  • CushioningElastic cushioning rings/pads at both ends
  • Mounting positionAny
  • GuideSliding guide
  • Structural designGuide
  • Position sensingFor proximity sensor
  • Symbol00991737
  • Operating pressure0.15 MPa … 1 MPa
  • Operating pressure1.5 bar … 10 bar
  • Max. speed0.8 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)1 – Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C … 80 °C
  • Impact energy in the end positions0.3 J
  • Max. force Fy810.7 N
  • Max. force Fy static810.7 N
  • Max. force Fz810.7 N
  • Max. force Fz static810.7 N
  • Max. torque Mx27.56 Nm
  • Max. static moment Mx27.56 Nm
  • Max. torque My15.4 Nm
  • Max. static moment My15.4 Nm
  • Max. torque Mz15.4 Nm
  • Max. static moment Mz15.4 Nm
  • Max. permissible torque load Mx as a function of the stroke6.27 Nm
  • Max. payload as a function of the stroke at defined distance xs121 N
  • Theoretical force at 6 bar, retracting247 N
  • Theoretical force at 6 bar, advancing295 N
  • Moving mass650 g
  • Product weight1256 g
  • Alternative connectionsSee product drawing
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Cover materialWrought aluminum alloy
  • Seals materialNBR
  • Housing materialWrought aluminum alloy
  • Piston rod materialHigh-alloy stainless steel
Manufacturer FESTO
Model DFM-25-20-P-A-GF 170847 Guided actuator
Condition New
