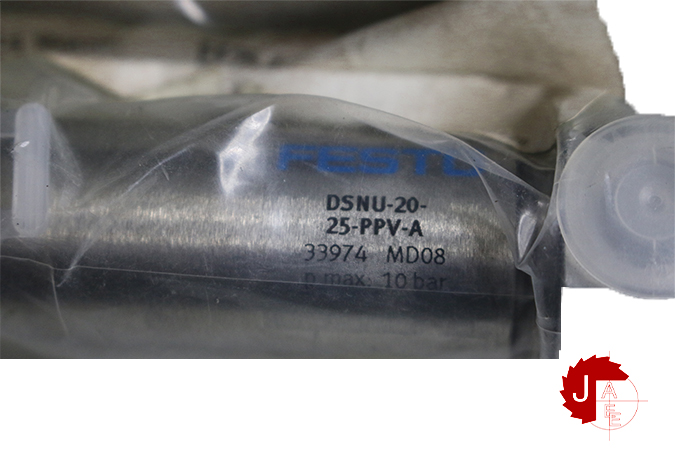

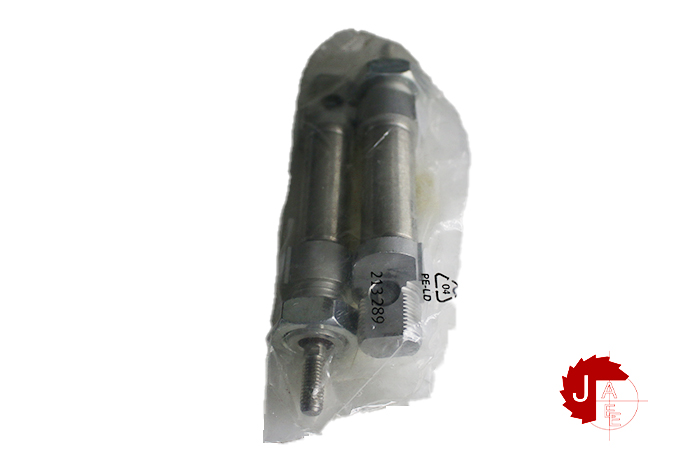

- Stroke25 mm
- Piston diameter20 mm
- Piston rod threadM8
- CushioningPneumatic cushioning, adjustable at both ends
- Mounting positionAny
- Conforms to standardCETOP RP 52 P ISO 6432
- Piston rod endExternal thread
- Structural designPiston Piston rod Cylinder barrel
- Position sensingFor proximity sensor
- Symbol00991235
- VariantsPiston rod at one end
- Operating pressure0.1 MPa … 1 MPa
- Operating pressure1 bar … 10 bar
- Mode of operationDouble-acting
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Cleanroom classClass 6 according to ISO 14644-1
- Ambient temperature-20 °C … 80 °C
- Impact energy in the end positions0.2 J
- Cushioning length15 mm
- Theoretical force at 6 bar, retracting158.3 N
- Theoretical force at 6 bar, advancing188.5 N
- Moving mass at 0 mm stroke44 g
- Additional moving mass per 10 mm stroke4 g
- Basic weight with 0 mm stroke186.8 g
- Additional weight per 10 mm stroke7.2 g
- Type of mountingWith accessories
- Pneumatic connectionG1/8
- Note on materialsRoHS-compliant
- Cover materialWrought aluminum alloy Plain anodized
- Seals materialNBR TPE-U(PU)
- Piston rod materialHigh-alloy stainless steel
- Material of cylinder barrelHigh-alloy stainless steel
