Pneumatic Cylinders and Actuators

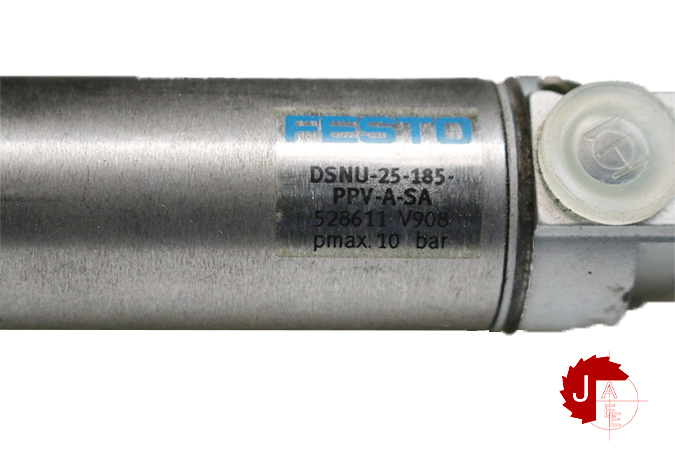

FESTO DSNU-25-185-PPV-A-SA 528611 ISO cylinder
90.00 $
Availability: 4 in stock
- Stroke1 128 mm
- Piston diameter25 mm
- CushioningElastic cushioning rings/pads at both ends Self-adjusting pneumatic end-position cushioning Pneumatic cushioning, adjustable at both ends
- Mounting positionAny
- Conforms to standardCETOP RP 52 P ISO 6432
- Structural designPiston Piston rod Cylinder barrel
- Position sensingFor proximity sensor
- VariantsIncreased chemical resistance Extended external thread piston rod Internal thread on piston rod Special thread on piston rod Piston rod with external thread shortened at one end Extended piston rod Clamping unit on the piston rod Axial supply port With direct mounting Lateral supply port With anti-twist protection High corrosion protection Uniform, slow movement Low friction Through piston rod Heat-resistant seals max. 120°C Piston rod at one end
- Protection against torsion/guideSquare piston rod
- Operating pressure0.1 MPa … 1 MPa
- Operating pressure1 bar … 10 bar
- Mode of operationDouble-acting
- CE marking (see declaration of conformity)as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)acc. to UK EX instructions
- Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
- Explosion prevention and protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
| Manufacturer | FESTO |
|---|---|
| Model | DSNU-25-185-PPV-A-SA 528611 ISO cylinder |
| Condition | New |
