- Stroke50 mm
- Piston diameter40 mm Equivalent diameter
- Max. angle of rotation of the piston rod +/-0.6 deg
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Mode of operationDouble-acting
- Structural designPiston Piston rod
- Position sensingFor proximity sensor
- Symbol00991217
- Protection against torsion/guideOval piston
- Operating pressure0.1 MPa … 1 MPa
- Operating pressure1 bar … 10 bar
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
Pneumatic Cylinders and Actuators

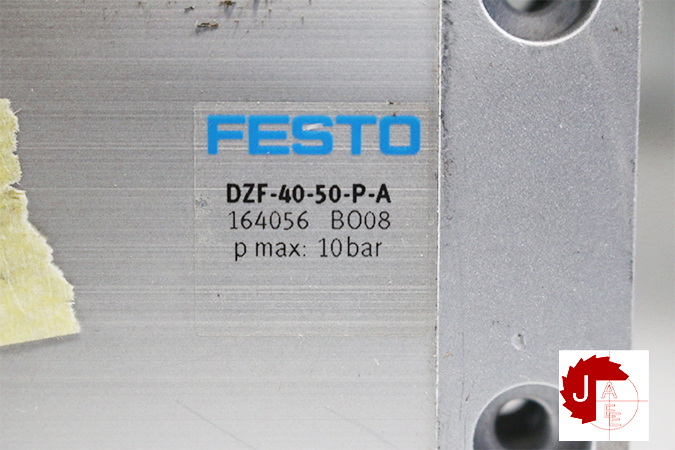

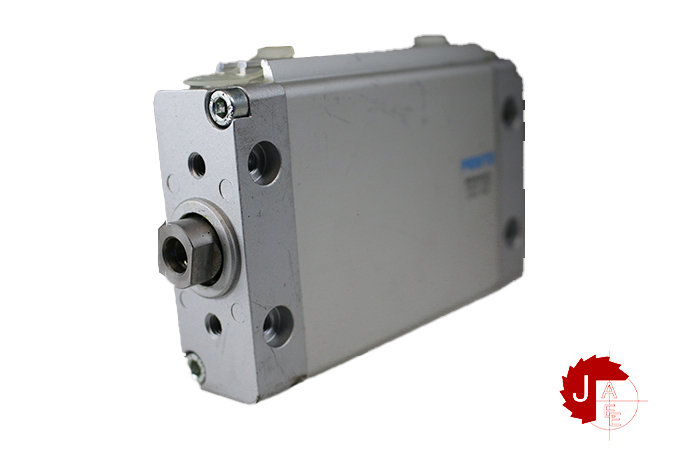

FESTO DZF-40-50-P-A 164056 Flat cylinder
SKU: 0995752
Category: Pneumatic Cylinders and Actuators
Tags: Festo, festo Flat cylinder
Only 2 items left.
Manufacturer | FESTO |
---|---|
Model | DZF-40-50-P-A 164056 Flat cylinder |
Condition | New |
