- Structural designPiston gate valve
- Actuation typeElectrical
- Sealing principleSoft
- Exhaust air functionWithout flow control option
- Manual overrideDetenting
- Reset methodMechanical spring
- Type of controlPilot-controlled
- Symbol00991008
- Valve function3/2, closed, monostable
- Operating pressure2.5 bar … 16 bar
- Duty cycle100%
- Coil characteristics24 V DC: 3.0 W
- Permissible voltage fluctuations+/- 10 %
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 – Moderate corrosion stress
- Note on materialsRoHS-compliant
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Temperature of medium-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Type of mountingLine installation With accessories
- Mounting positionAny
- Flow directionNon-reversible
- Product weight500 g
- Pneumatic connection 3G1/4
- Air quality class at the outputCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Electrical connectionForm C Plug as per DIN EN 175301-803
- Signal status displayWith accessories
- Seals materialNBR
- Housing materialDie-cast aluminum
| Manufacturer | FESTO |
|---|---|

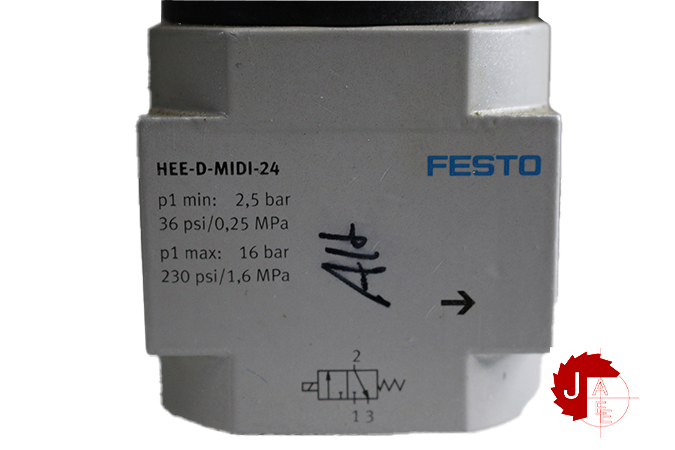

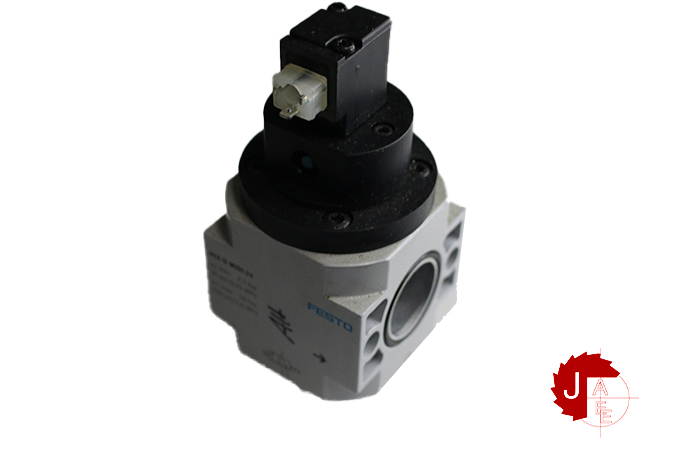

| Model | HEE-D-MIDI-24 172959 |
| Condition | New |
